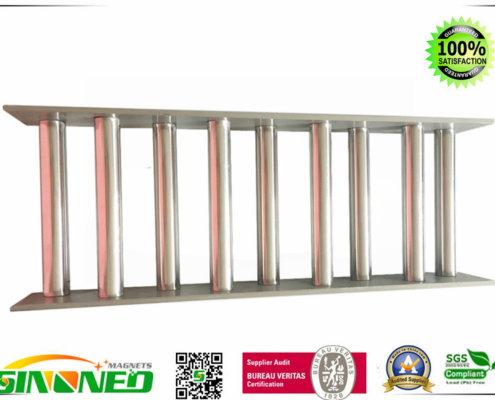

RECTANGULAR STAINLESS STEEL MAGNETIC GRILL SEPARATOR
Magnetic Grill And Grate Filters, Neodymium Magnetic Grill, Magnetic Grill Separators
| Material: | SUS304/316/316L+NdFeB Magnets/SmCo Magnets |
| Shape: | Round, rectangle, single-level, double-level, etc. |
| Application: | Hopper, Industrial filter, food industry, Ceramic industry ect. |
| Dimension: | 100mm-2000mm, or customized as your request |
| Working Temp. | 80ºC~350ºC |
| Various End: | Sealed, drilled or tapped holes, or with bolt, or as your request. |
| Magnet Strength: | 8000-14000Gs |
| Package: | Standard Export Cartons |
| Shipping: | By sea, By air or By express delivery (DHL/UPS/FEDEX) |
| Features: | Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion |
Sinoneo Magnet is a professional manufacturer and exporter of Magnetic Grill, magnetic filter grill, High-Performance grill magnets in China. We supply high quality of Food Grade Stainless Steel Magnetic Grill within the time stipulated.
Are you looking for a custom magnetic grill and grate, magnetic grill filters manufacturer & supplier?
We have a wide selection at great prices to help you get creative. All the magnetic grill and grate are quality guaranteed. If you have any questions, please feel free to contact us now.

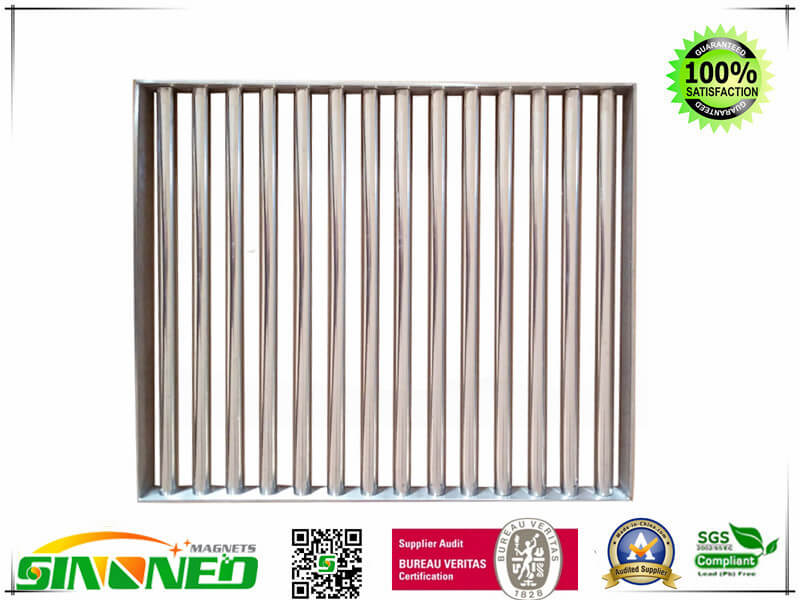

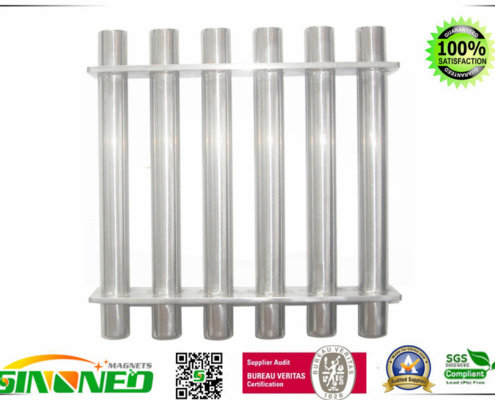

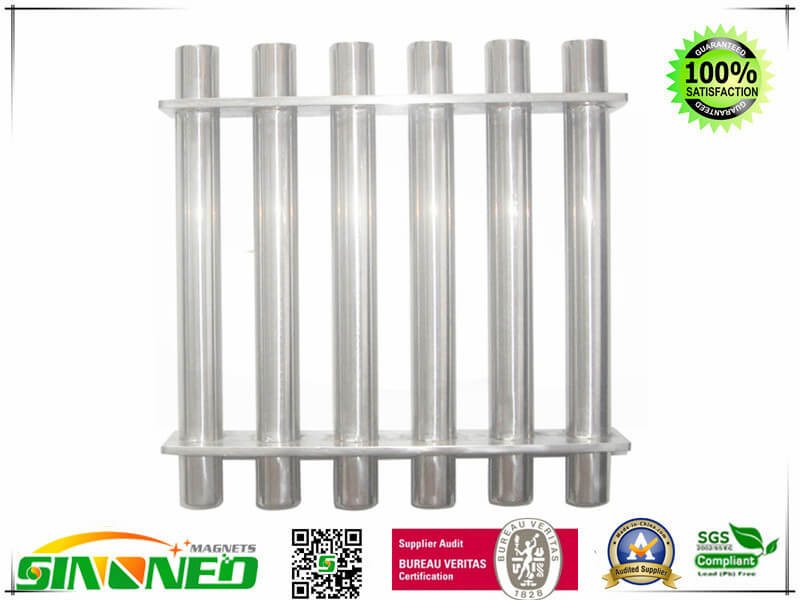

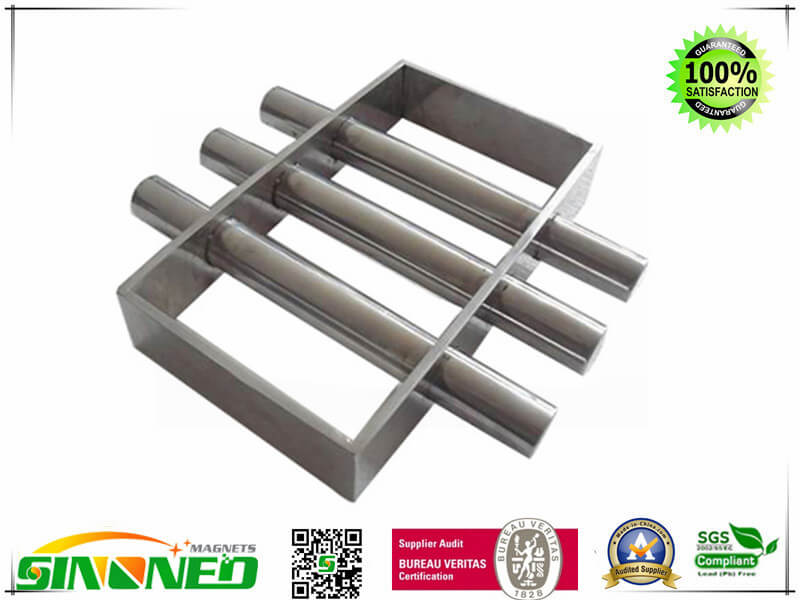

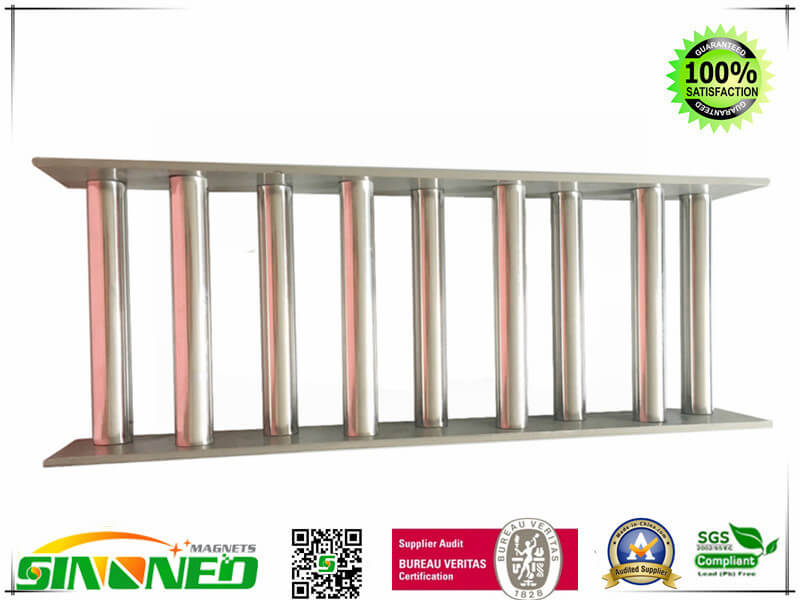

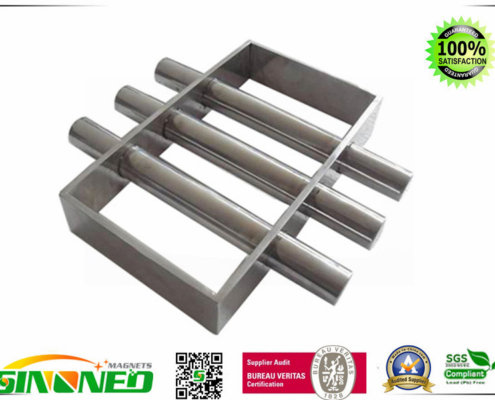

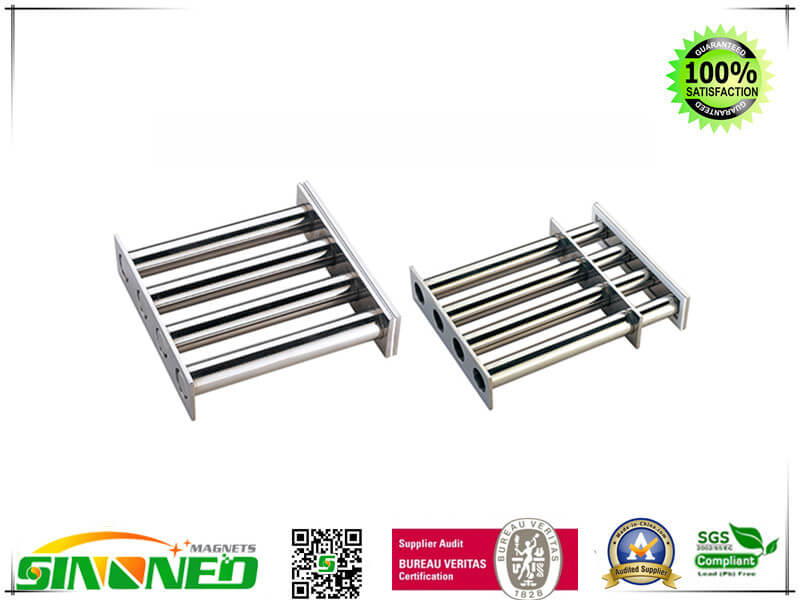

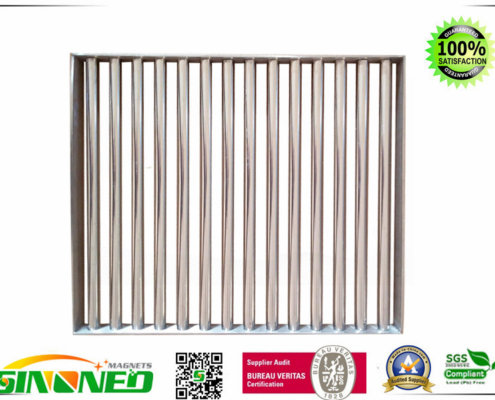

Sinoneo Magnetic Grill is used for the separation of iron particles mixed with dry, granular, or free-flowing material. Magnetic Grill is made by using stainless steel frames (Round, Square or Rectangular) with Magnetic bars inside the frame.
These Magnetic Grills are made up of Magnetic Elements that are fitted inside a required size frame. The Magnetic Elements are made up of hard Ferrite Magnets or High-Intensity Strong Neodymium Magnets. All the components are made up of Stainless Steel 304/316 /316L material. The overall construction of the Magnetic Grill can also be made as per the customer specification and sizes.
The magnetic grills are efficiently utilized if contamination is within 1% to 1.5% by weight. For higher levels of contamination Drawer Grills or Multi Drawer Grills should be used.
Magnetic Grill Optional Features:
1. The shell material: SS304, SS316,SS316L;
2. The magnetic strength grade: 2000Gs, 3000Gs, 6000Gs, 8000Gs,10000Gs, 12000Gs;
3. Working temperature grade <: 80, 100, 120, 150, 180, 200, 250, 300 degree Celsius;
4. Various designs available: easy clean type, one layer, multilayer;
5. Sizes and Shape: any sizes and any shapes, such as square, rectangle, round, oval, triangle, rhombus or irregular polygon;
6. It also takes customers' designs.
Industries using Magnetic Grill:
- Plastic
- Food Products. (Sugar, Coffee, Tea, Grains, Pulses, Flour, Spices, Milk, etc.)
- Pharmaceutical
- Chemical
- Ceramic
- Colors / Paints
- Pigments
- Ink
- Refractory
- Mineral
Maximum Operation Temperature of Magnetic Grill:
6 series is available for the customer to choose from
N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C
Magnet Strength of Magnetic grill:
Per customers’ requirements. The highest is up to 12, 000GS (1.2T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:
| 0.25T | 0.5T | 0.7T | 0.9T | 1T | 1.1T | 1.2T | |
| Φ 19 (0.75″ ) | √ EH | √ EH | √ EH | √ H | √ M | – | – |
| Φ 22 (0.85″ ) | √ EH | √ EH | √ EH | √ H | √ M | √ N | – |
| Φ 25 (1.00″ ) | √ EH | √ EH | √ EH | √ SH | √ H | √ M | √ N |
| Φ 32 (1.25″ ) | √ EH | √ EH | √ EH | √ SH | √ H | √ M | √ N |
| Φ 38 (1.50″ ) | √ EH | √ EH | √ EH | √ UH | √ SH | √ H | √ M |
| Φ 50 (1.75″ ) | √ EH | √ EH | √ EH | √ UH | √ SH | √ H | √ M |
| Φ 76 (3.00″ ) | √ EH | √ EH | √ EH | √ UH | √ UH | √ SH | √ H |
| Φ 100(4.00″ ) | √ EH | √ EH | √ EH | √ UH | √ UH | √ SH | √ H |
Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.
(2). The related Max working temperature from different series.
H series: <=120
SH series: <=150
UH series: <=180
EH series: <=250
(3).Round and square are both available
(4). 304 and 316L stainless steel type are available
(5). Magnetic bar length can be custom made. Max's length is 2500mm when the diameter is 25mm.
(6). Various end designs are available, such as Nailhead, thread hole, double screw bolt, etc.
[/av_textblock]
[av_textblock size='' font_color='' color='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-kba2phj2' id='' custom_class='' admin_preview_bg='']
The Specification of Magnetic grill:

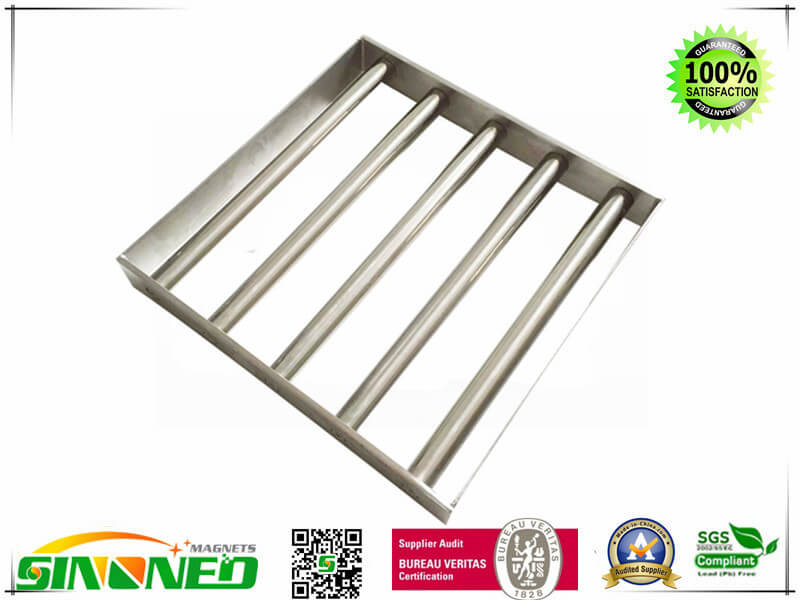

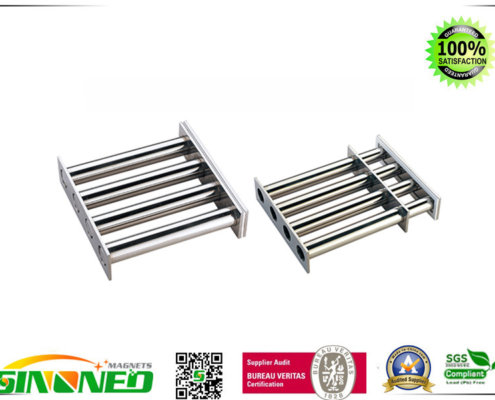

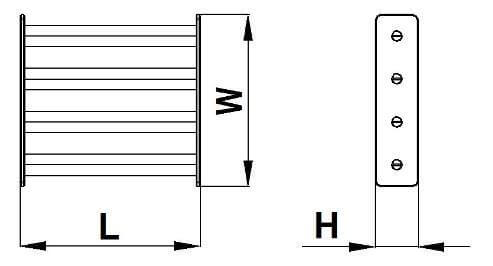

Square shape
| Specification | Size (mm) | No. of rods | ||
| L | W | H | ||
| MG 10/10 | 100 | 100 | 40 | 2 |
| MG 15/15 | 150 | 150 | 40 | 3 |
| MG 20/20 | 200 | 200 | 40 | 4 |
| MG 25/25 | 250 | 250 | 40 | 5 |
| MG 30/30 | 300 | 300 | 40 | 6 |
| MG 35/35 | 350 | 350 | 40 | 7 |
| MG 40/40 | 400 | 400 | 40 | 8 |
| MG 45/45 | 450 | 450 | 40 | 9 |
| MG 50/50 | 500 | 500 | 40 | 10 |
| MG 30/20 | 300 | 200 | 40 | 4 |
| MG 40/20 | 400 | 200 | 40 | 4 |
| MG 40/30 | 400 | 300 | 40 | 6 |
| MG 50/20 | 500 | 200 | 40 | 4 |
| MG 50/30 | 500 | 300 | 40 | 6 |
| MG 50/40 | 500 | 400 | 40 | 8 |

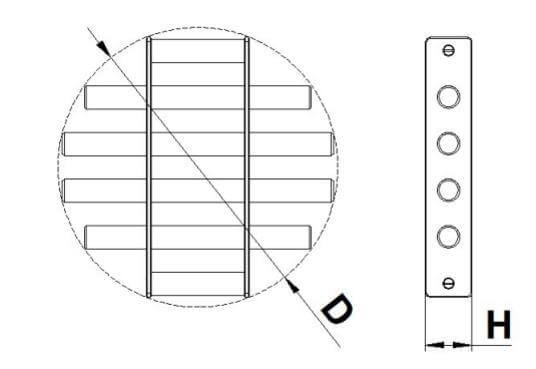

Round shape
| Specification | Size(mm) | No. of rods | |
| D | H | ||
| MG100 | 100 | 40 | 2 |
| MG150 | 150 | 40 | 3 |
| MG200 | 200 | 40 | 4 |
| MG250 | 250 | 40 | 5 |
| MG300 | 300 | 40 | 6 |
| MG350 | 350 | 40 | 7 |
| MG400 | 400 | 40 | 8 |
| MG450 | 450 | 40 | 9 |
| MG500 | 500 | 40 | 10 |
Magnetic grill filters have a tremendous demand for removing solid and liquid ferrous materials. And what can filter out iron much easier and precisely than a magnet? Whatever may be the purpose, the iron residues stick all over the magnet, and then removed by hands.
We are the leading manufacturer of magnets and magnetic products in China, have a wide collection of magnetic grids and grates filter.
Our magnetic grills and grates are enclosed within a stainless steel coating. Our products are resistant to corrosion and hence have a long duration. In simple words, with an onetime investment, you can enjoy benefits for a longer time.
Our clientele profile includes some of the leading businesspersons from medicines, sanitation, machinery, and textile and food industry. We provide quality products at the most competitive price. Our product price ranges from $7-$400.
Go through our product list and place your order for the magnetic grill and grate. We provide fast shipping and you can expect the product within 12-15 business days. We are very particular about client satisfaction and look after the requirements. Free quotes will be provided upon request.
For any queries or else for placing your orders feel free to contact us now.
In order to quote you the best price quickly, please provide the following information:
1. Product size, material, etc
2. Order quantity;
3. Attached the drawings if customized
4. Any special packing or other requirements
Our advantages: High quality, best service, fast delivery.
We offer OEM service.
