High Performance Magnetic Grids And Grates

Magnetic Grids And Grates Filters, Neodymium Magnetic Grates, Magnetic Grate Separators

Material: SUS304/316/316L+NdFeB Magnets/SmCo Magnets
Shape: Round, rectangle, single-level, double-level, etc.
Application: Hopper, Industrial filter, food industry, Ceramic industry ect.
Dimension:                     100mm-2000mm, or customized as your request
Working Temp. 80ºC~350ºC
Various End: Sealed, drilled or tapped holes, or with bolt, or as your request.
Magnet Strength: 8000-14000Gs
Package:  Standard Export Cartons
Shipping: By sea, By air or By express delivery (DHL/UPS/FEDEX)
Features: Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion

Sinoneo Magnet is a professional manufacturer and exporter of Magnetic Grids And Grates, magnetic filter grates, High-Performance grid and grate magnets in China. We supply high quality of Food Industry Grade Stainless Steel Magnetic Grid And Grates within the time stipulated.

Are you looking for a custom magnetic grids and grates, magnetic grate filters manufacturer & supplier?

We have a wide selection at great prices to help you get creative. All the magnetic grids and grates are quality guaranteed. If you have any questions, please feel free to contact us now.

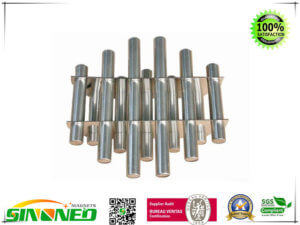

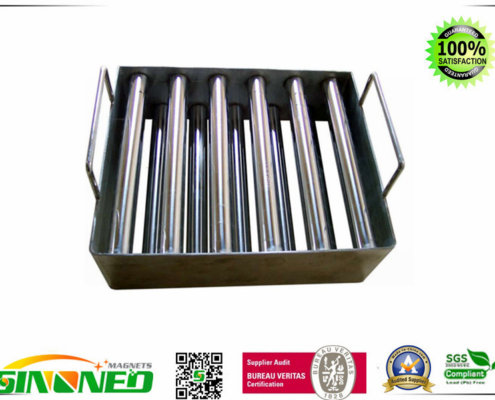

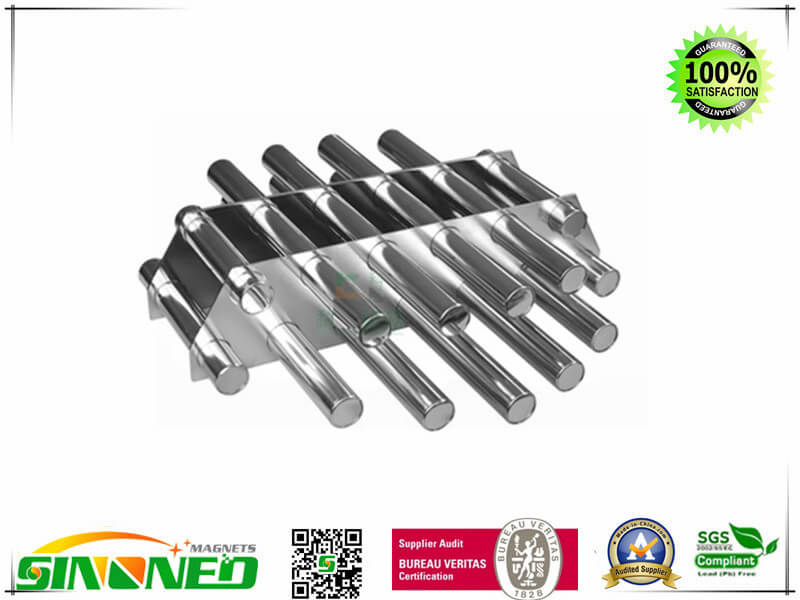

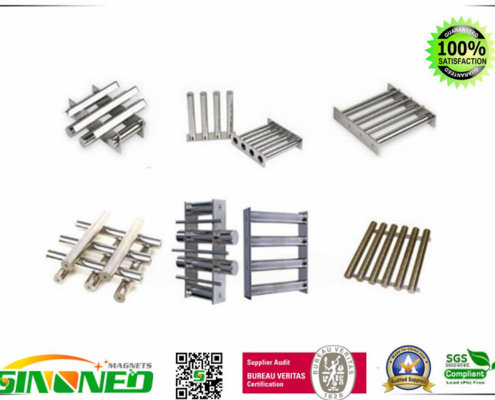

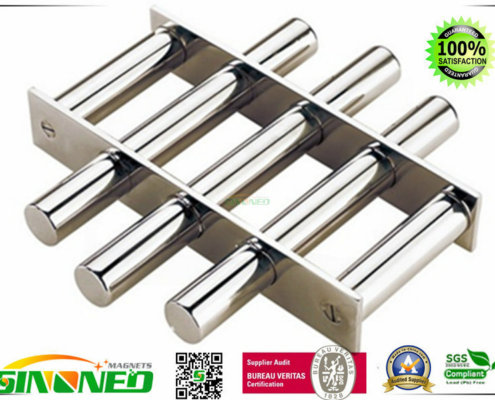

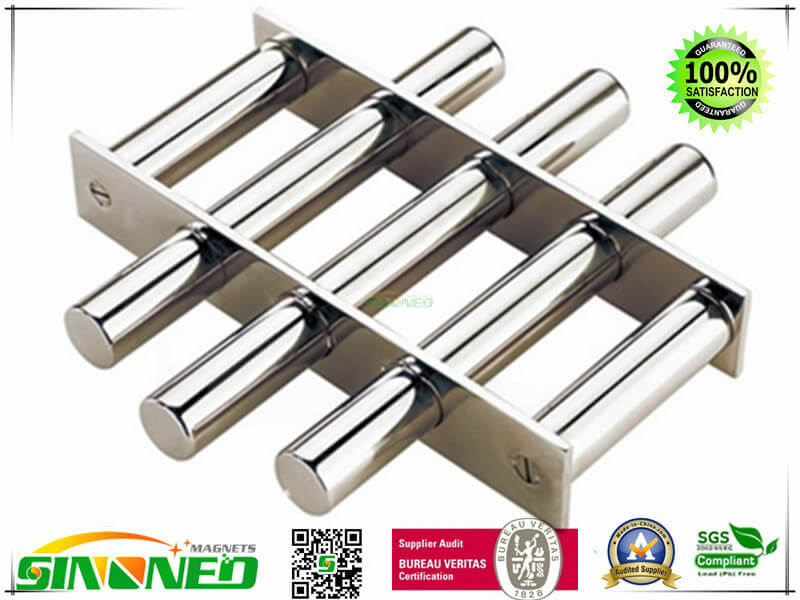

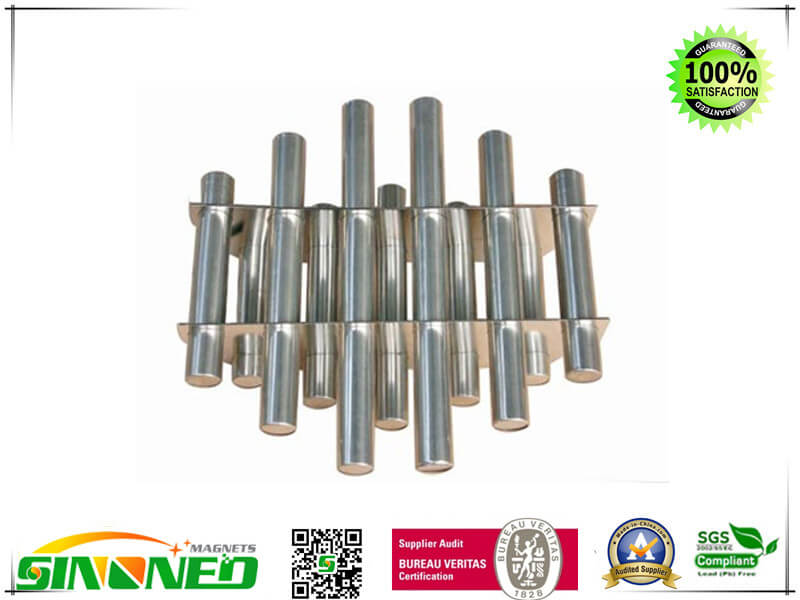

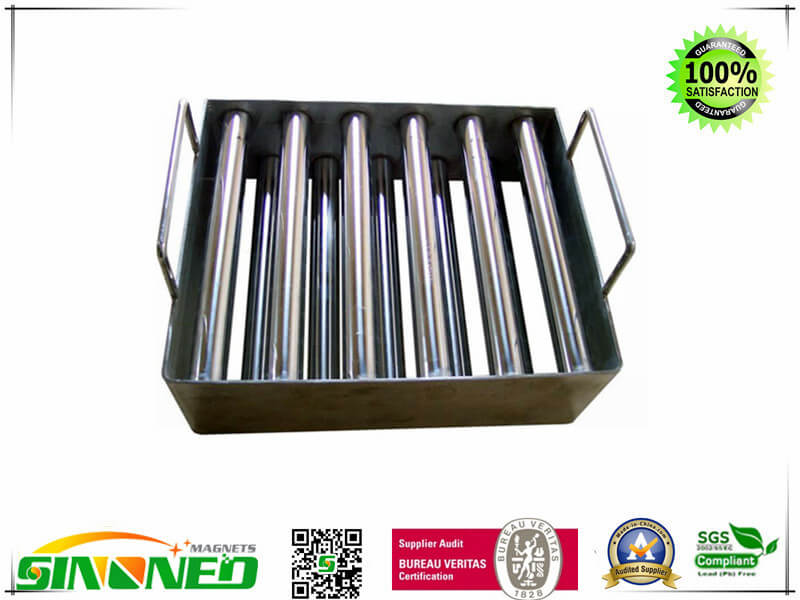

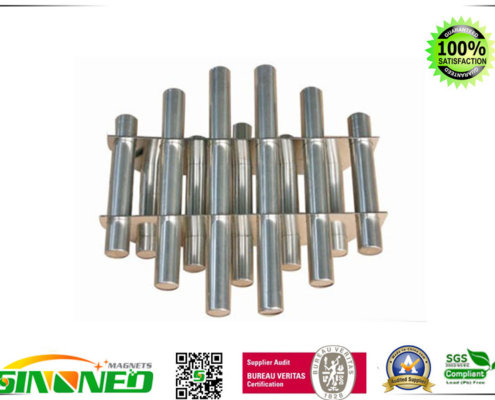

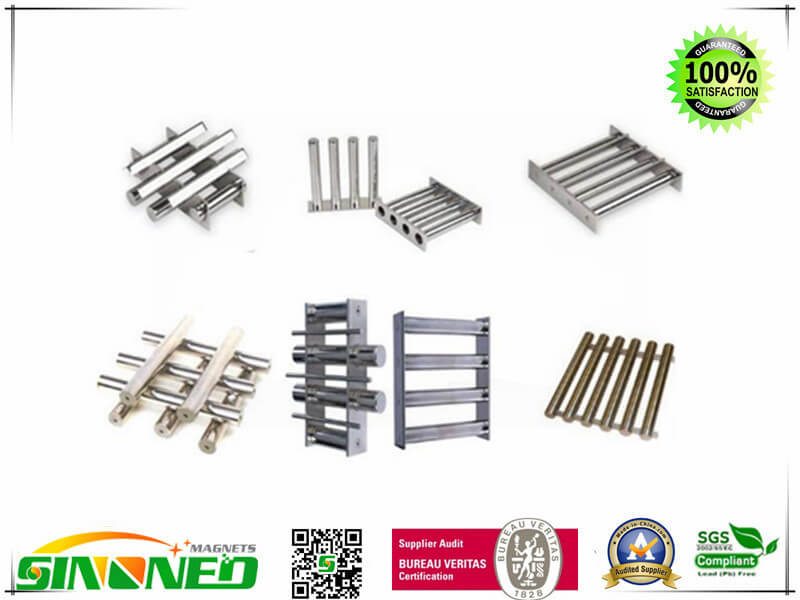

Sinoneo Magnetic Grids and Grates Filter are constructed by a row of magnetic bars which are fixed by frames in various shape. It can be square, rectangle, round, oval, triangle, rhombus, or irregular polygon, to suit for different positions. Center distance of bars is usually 2 inches.

Magnetic grids and grates are designed for product purity of free-flowing materials such as carbon black, drugs, chemicals, cosmetics, plastics, food industries, and so on. These units are easily installed in any hopper or floor opening, chute or duct.

It makes product stream free-flowing products to come in direct contact with the grate. When anything containing iron substances passes through the framework, Iron particles are attracted to the bar magnets by magnetic fields.

With this solution, your equipment and facilities will be protected, while your products will be safe for consumption.

Magnetic Grids and Grates optional features:

1. The shell material: SS304, SS316,SS316L;
2. The magnetic strength grade: 2000Gs, 3000Gs, 6000Gs, 8000Gs,10000Gs, 12000Gs;
3. Working temperature grade <: 80, 100, 120, 150, 180, 200, 250, 300 degree Celsius; 4. Various designs available: easy clean type, one layer, multilayer; 5. Sizes and Shape: any sizes and any shapes, such as square, rectangle, round, oval, triangle, rhombus or irregular polygon; 6. It also takes customers' designs.

Field of applications for the magnetic grids and grates filter :

Pharmaceutical industry
Chemical industry
Food industry
Plastic industry
Recycling industry
Textile industry
Water treatment
Other liquid(hydro-material) separation applications.

Maximum Operation Temperature:

6 series is available for the customer to choose from

N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C

Magnet Strength of Magnetic grids and grates:

Per customers’ requirements. The highest is up to 12, 000GS (1.2T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:

0.25T 0.5T 0.7T 0.9T 1T 1.1T 1.2T
Φ 19 (0.75″ ) √ EH √ EH √ EH √ H √ M
Φ 22 (0.85″ ) √ EH √ EH √ EH √ H √ M √ N
Φ 25 (1.00″ ) √ EH √ EH √ EH √ SH √ H √ M √ N
Φ 32 (1.25″ ) √ EH √ EH √ EH √ SH √ H √ M √ N
Φ 38 (1.50″ ) √ EH √ EH √ EH √ UH √ SH √ H √ M
Φ 50 (1.75″ ) √ EH √ EH √ EH √ UH √ SH √ H √ M
Φ 76 (3.00″ ) √ EH √ EH √ EH √ UH √ UH √ SH √ H
Φ 100(4.00″ ) √ EH √ EH √ EH √ UH √ UH √ SH √ H

Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.

(2). The related Max working temperature from different series.
H series: <=120 SH series: <=150 UH series: <=180 EH series: <=250 (3).Round and square are both available (4). 304 and 316L stainless steel  type are available (5). Magnetic bar length can be custom made. Max's length is 2500mm when the diameter is 25mm. (6). Various end designs are available, such as Nailhead, thread hole, double screw bolt, etc. [/av_textblock] [av_textblock size='' font_color='' color='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-kba2phj2' id='' custom_class='' admin_preview_bg='']

The Specification of Magnetic grids and grates:

Square shape
size of magnetic grid and grates

Specification Size (mm) No. of rods
L W H
MG 10/10 100 100 40 2
MG 15/15 150 150 40 3
MG 20/20 200 200 40 4
MG 25/25 250 250 40 5
MG 30/30  300 300 40 6
MG 35/35 350 350 40 7
MG 40/40 400 400 40 8
MG 45/45 450 450 40 9
MG 50/50 500 500 40 10
MG 30/20 300 200 40 4
MG 40/20 400 200 40 4
MG 40/30 400 300 40 6
MG 50/20 500 200 40 4
MG 50/30 500 300 40 6
MG 50/40 500 400 40 8

Round shape
size of magnetic grid and grate filters

Specification Size(mm) No. of rods
D H
MG100 100 40 2
MG150 150 40 3
MG200 200 40 4
MG250 250 40 5
MG300 300 40 6
MG350 350 40 7
MG400 400 40 8
MG450 450 40 9
MG500 500 40 10

Our advantage:

 1, With more than 10 years experience of magnets area

2, Experienced Staff

3, Sophisticated equipment

 4, Competitive price: People have asked us how we can offer such high quality at such good prices and the answer is simple: we
design and build our own products and can pass those savings on to you. There is no middleman.

5, OEM are welcomed, samples are available, small orders accepted

6,100% Quality &  Best Service Guarantee: Competitive pricing doesn’t mean we skimp on service. Our fully staffed office of experienced professionals strives to return your quote on the same business day.

7, Quick delivery time: It is about 7~15 days.

8, Payment: We can accept T/T, Western Union, Paypal

Let Sinoneo Magnets help you in filtering out those unwanted ferrous materials!

Magnetic grids and grates filter have tremendous demand for removing solid and liquid ferrous materials. And what can filter out iron much easier and precisely than a magnet? Whatever may be the purpose, the iron residues stick all over the magnet, and then removed by hands.

We are the leading manufacturer of magnets and magnetic products in China, have a wide collection of magnetic grids and grates filter.

Our magnetic grids and grates are enclosed within a stainless steel coating. Our products are resistant to corrosion and hence have a long duration. In simple words, with an onetime investment, you can enjoy benefits for a longer time.

Our clientele profile includes some of the leading businesspersons from medicines, sanitation, machinery, and textile and food industry.  We provide quality products at the most competitive price. Our product price ranges from $7-$400.

Go through our product list and place your order for the magnetic grids and grates. We provide fast shipping and you can expect the product within 12-15 business days. We are very particular about client satisfaction and look after the requirements. Free quotes will be provided upon request.

For any queries or else for placing your orders feel free to contact us now.

In order to quote you the best price quickly, please provide the following information:

1. Product size, material, etc
2. Order quantity;
3. Attached the drawings if customized
4. Any special packing or other requirements
Our advantages: High quality, best service, fast delivery.
We offer OEM service.
Quality First, Customer Forever
