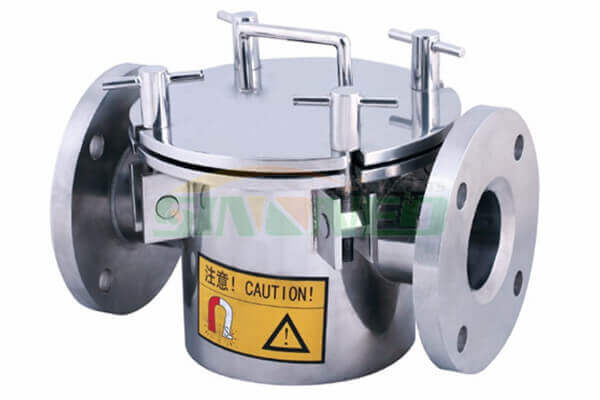

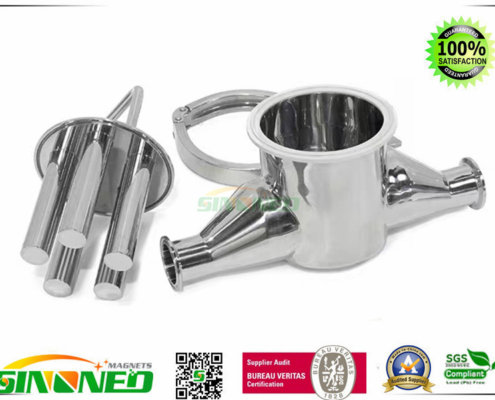

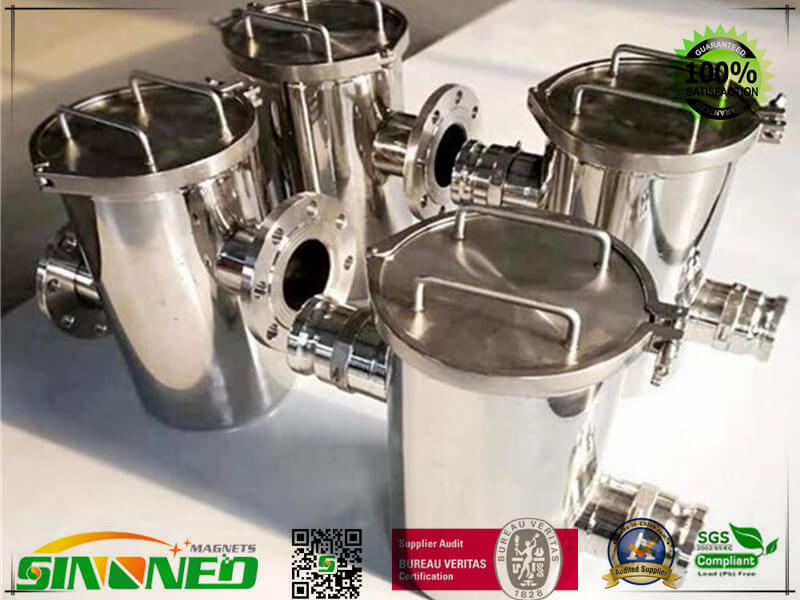

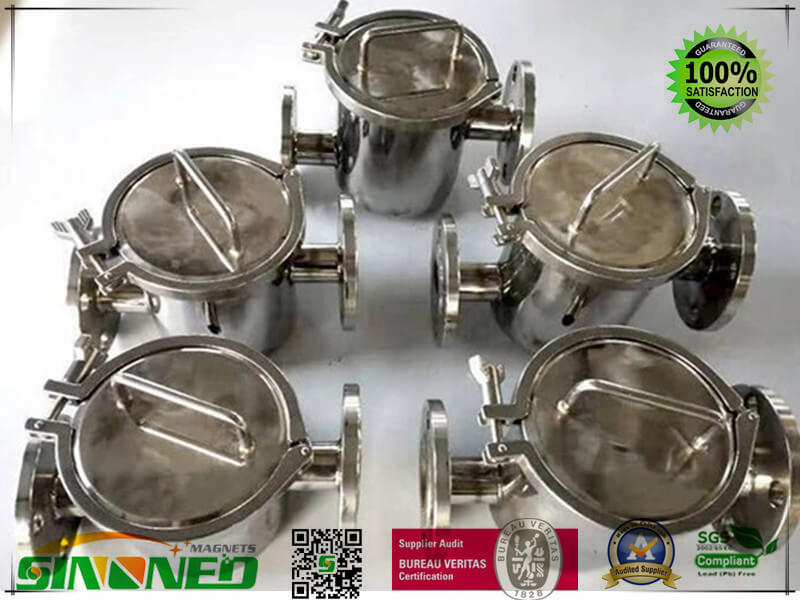

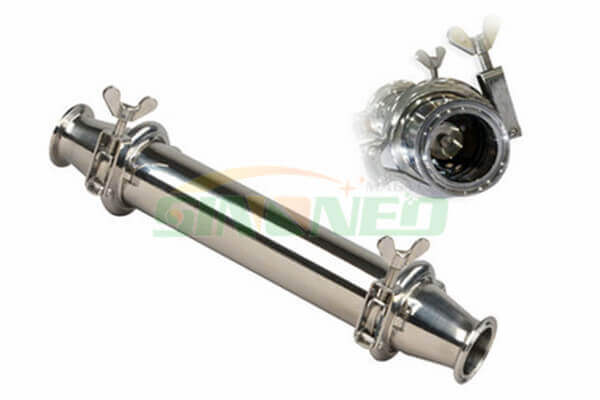

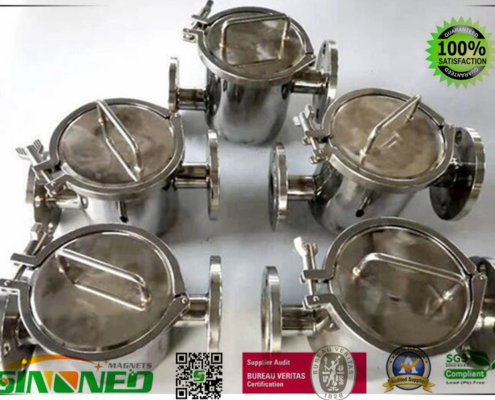

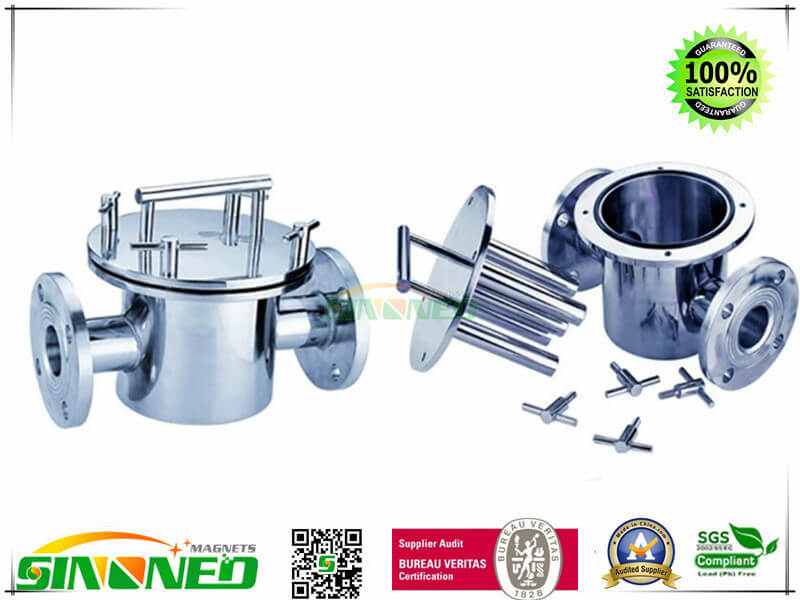

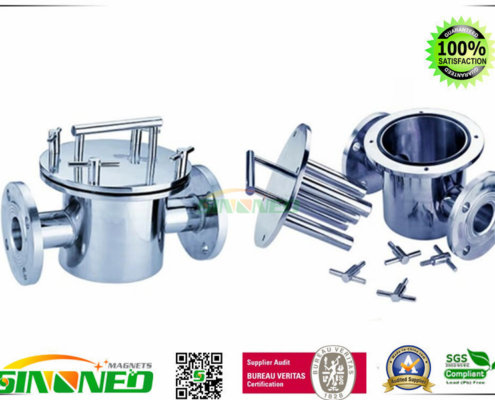

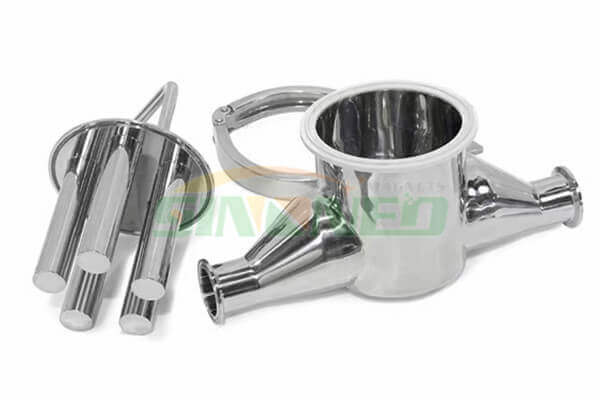

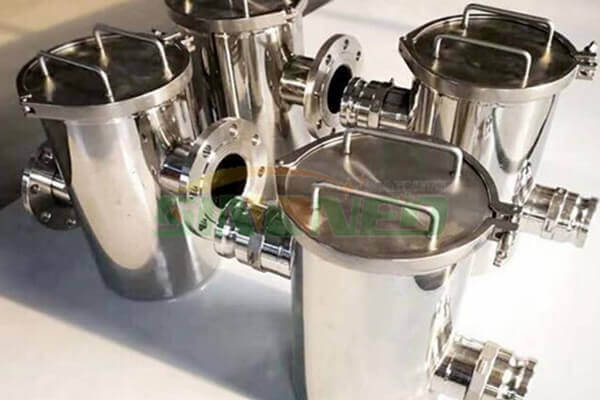

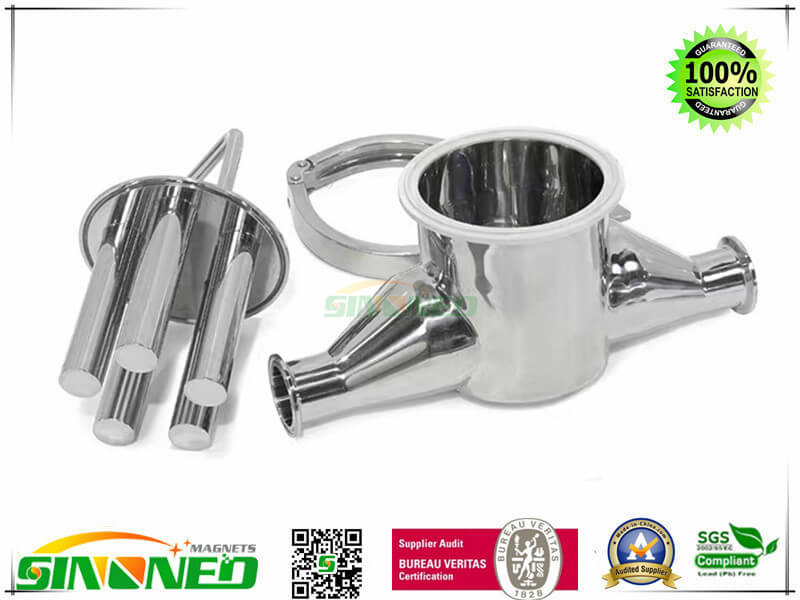

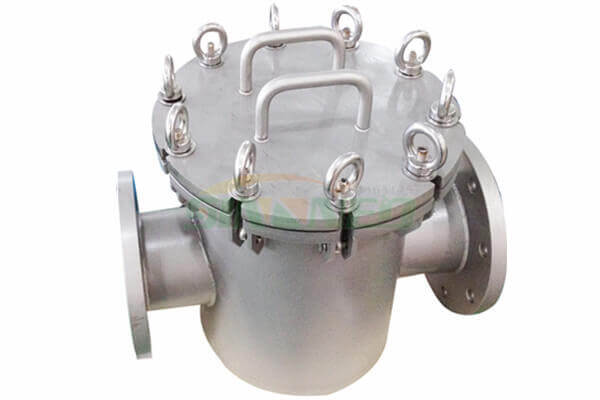

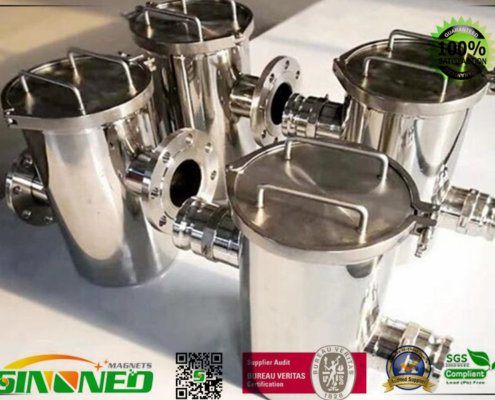

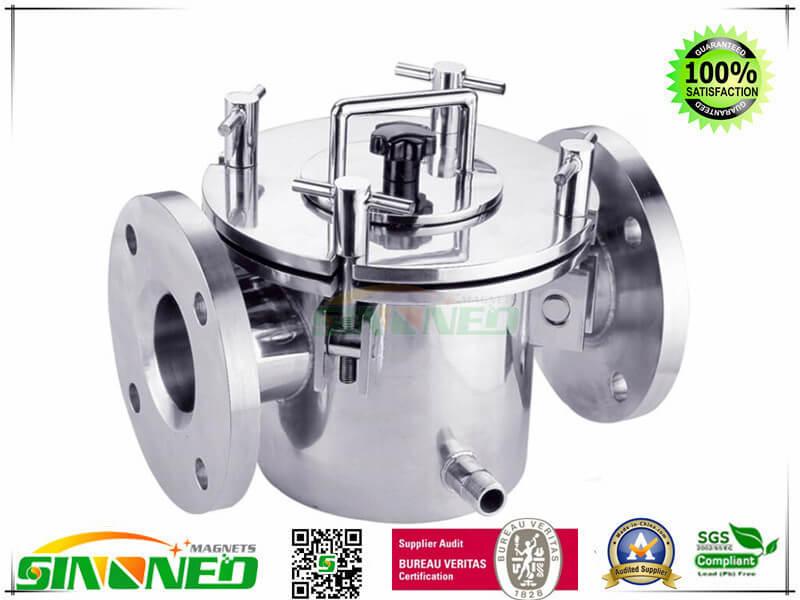

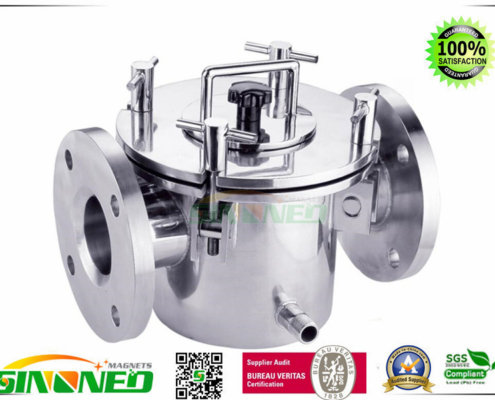

Liquid Magnetic trap Separators are made from a magnetic bar group and a big 304 or 316 stainless steel tube house. As one kind of magnetic filter or magnetic separator, they also called a magnetic trap, liquid trap magnetic separator, sanitary liquid trap magnet, Liquid Line Magnetic Traps, or magnetic liquid trap, consist of a powerful round magnetic bar and round stainless steel housing with inlet and outlet.

The liquid magnetic trap separator is designed to remove ferrous contamination from different viscosity level liquid or slurry lines. It may be installed vertically, horizontally, or on an angle without affecting its magnetic efficiency. In most application, there is no appreciable reduction in flow rates or pressure drop when this magnetic separator is assembled in the product line.

Features of liquid magnetic trap separator:

•304 ，316L or other Special alloy construction, PTFE coating

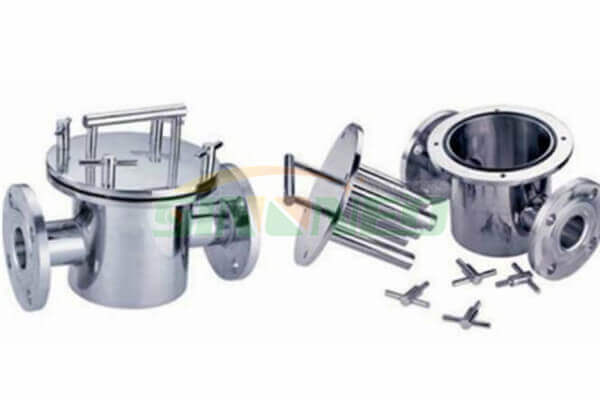

•Inlet/outlet: clamp, flange，Thread, weld end or Special connectors
• Operating pressures can be from 0MPa to 16Mpa

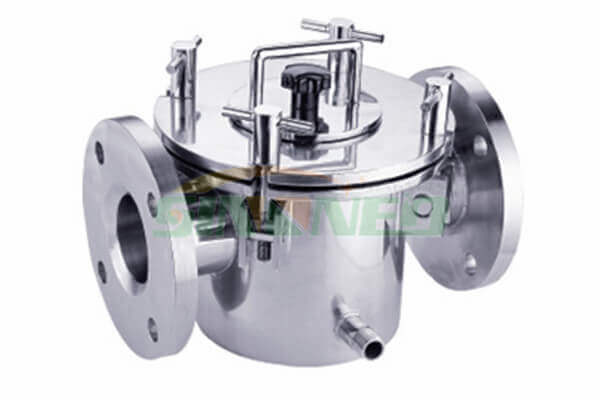

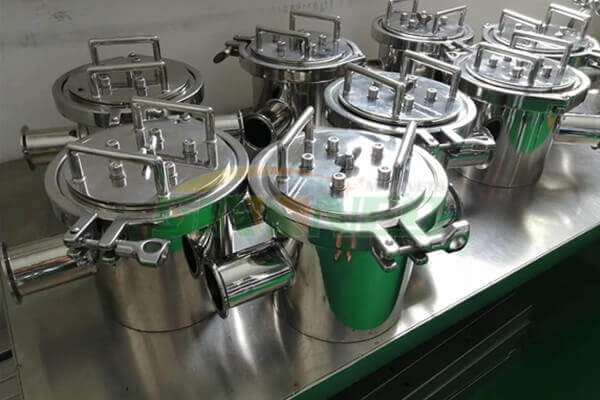

• Model: Normal style, Easy Cleaning, Quick open Style, Insulation Style and customer made
• Magnetic strength:8000Gs to 13000 Gs

Standard working temperature≤80℃, max working temperature can be chosen from 80℃ to 350℃ as the same with magnetic bars if needed.

Application of liquid magnetic trap separator:

Food and beverage, machining, pharmaceutical,

chemical, oil, ceramics, pulp, and paper industrial,

the hot water supply of cleaning the iron particle to speed up the water heating time reduce the cost
