Name: The best Permanent Magnetic Grids , Grid Mganets 4 you From Sinoneo Magnets
Availability: InStock

POWERFUL PERMANENT MAGNETIC GRIDS

Permanent Magnetic Grids Filter, Neodymium Magnetic Grids, Magnetic Grid Separators

Material:	SUS304/316/316L+NdFeB Magnets/SmCo Magnets
Shape:	Round, rectangle, single-level, double-level, etc.
Application:	Hopper, Industrial filter, food industry, Ceramic industry ect.
Dimension:	100mm-2000mm, or customized as your request
Working Temp.	80ºC~350ºC
Various End:	Sealed, drilled or tapped holes, or with bolt, or as your request.
Magnet Strength:	8000-14000Gs
Package:	Standard Export Cartons
Shipping:	By sea, By air or By express delivery (DHL/UPS/FEDEX)
Features:	Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion

Sinoneo Magnet is a professional manufacturer and exporter of Permanent Magnetic Grids, magnetic filter grates, High-Performance permanent grids magnets in China. We supply high quality of Food Grade Permanent Magnetic Grids And Grates within the time stipulated.

Are you looking for a custom permanent magnetic grids manufacturer & supplier?

We have a wide selection at great prices to help you get creative. All the permanent magnetic grids and grates are quality guaranteed. If you have any questions, please feel free to contact us now.

CONTACT US NOW.

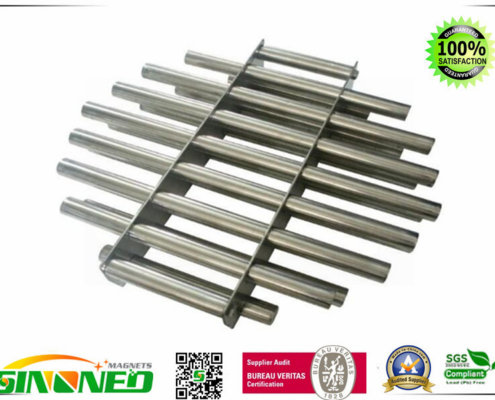

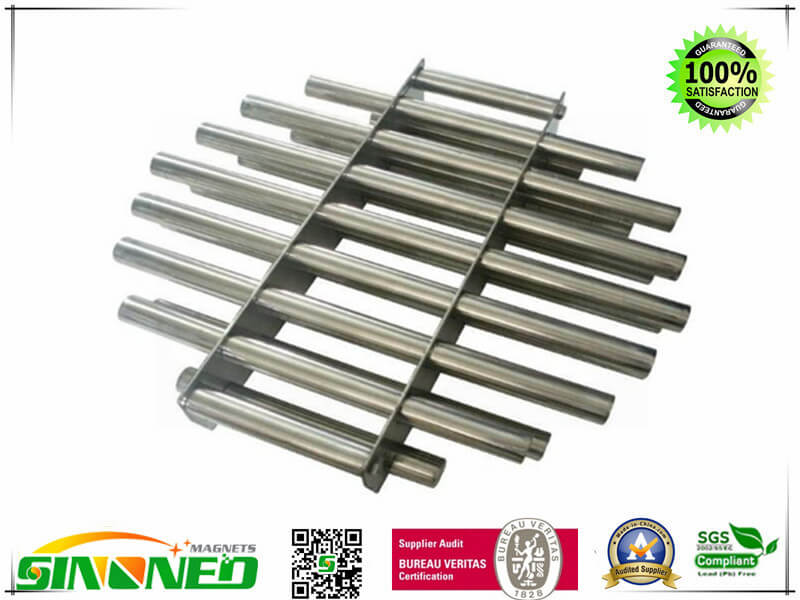

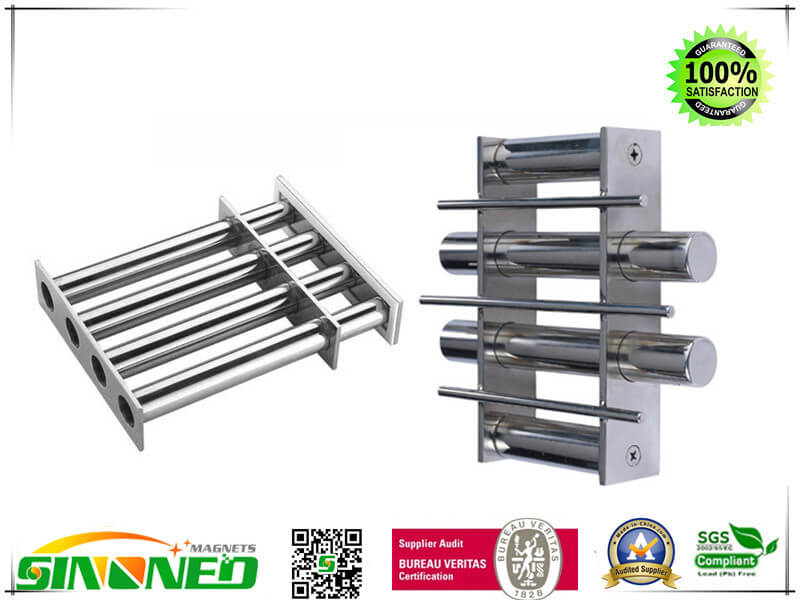

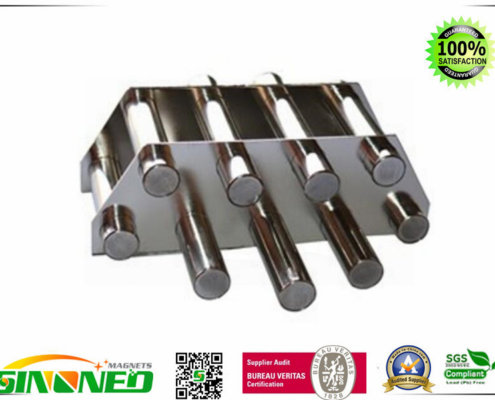

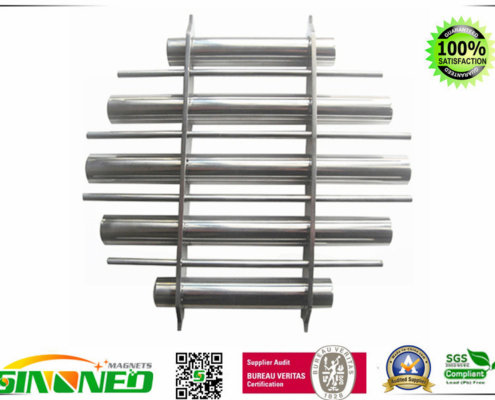

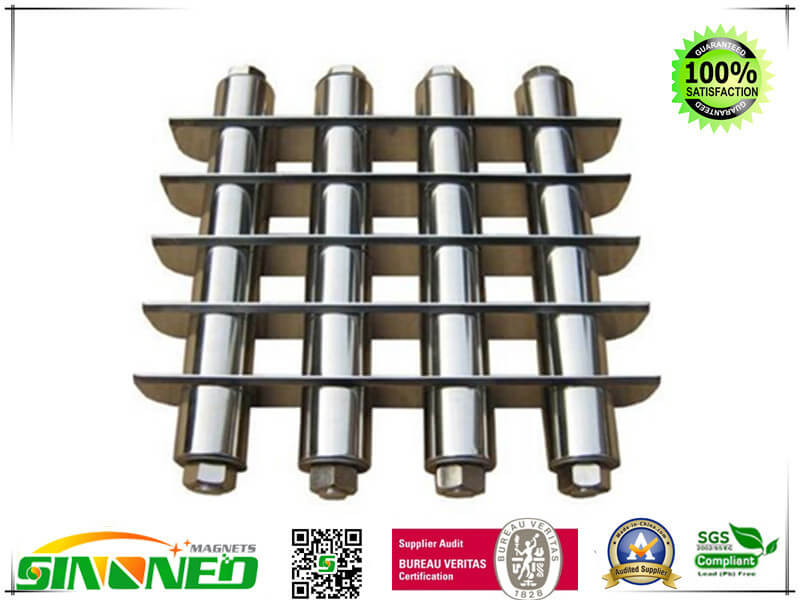

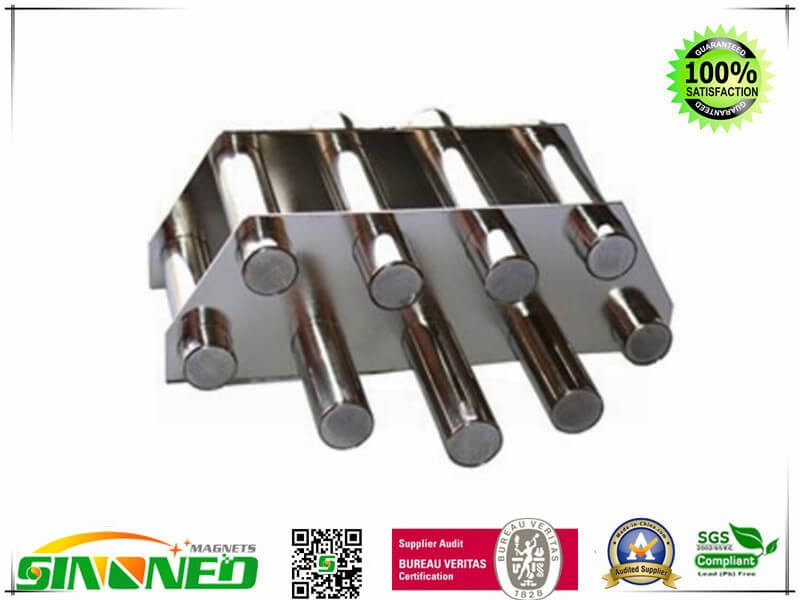

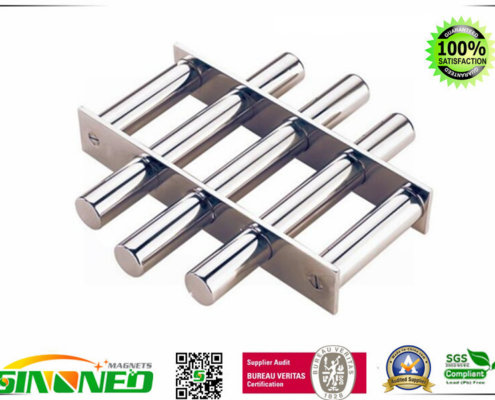

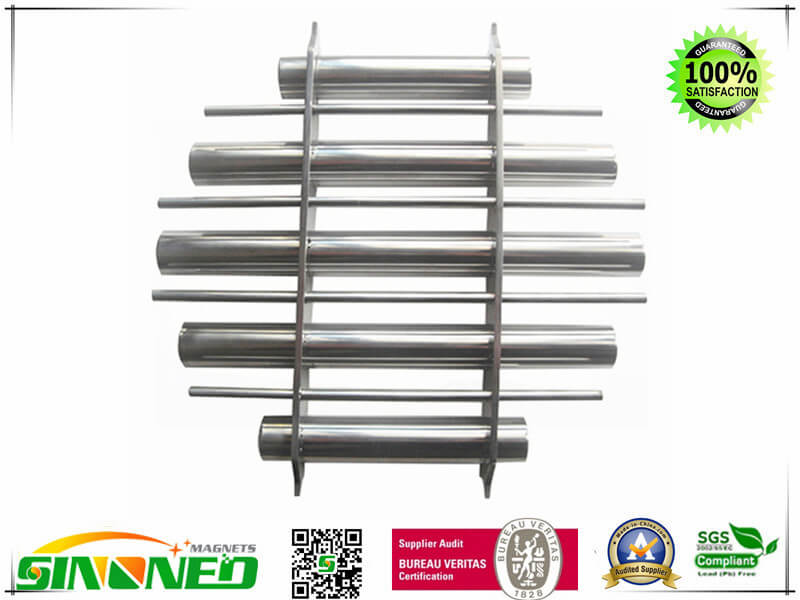

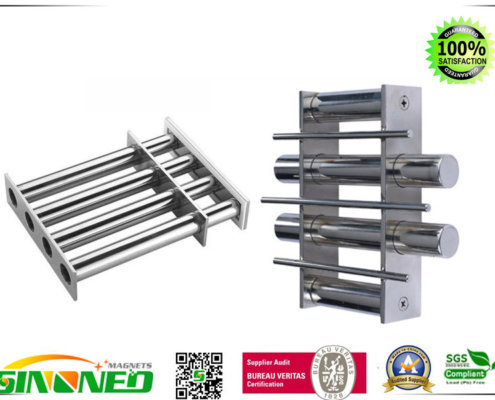

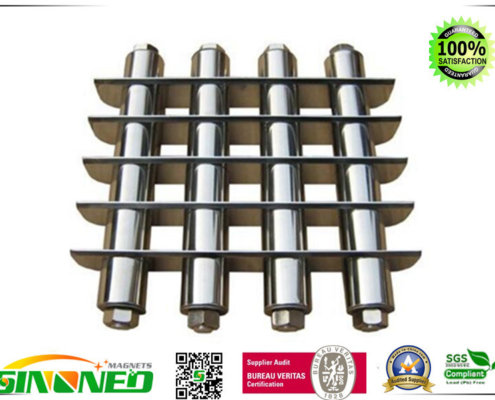

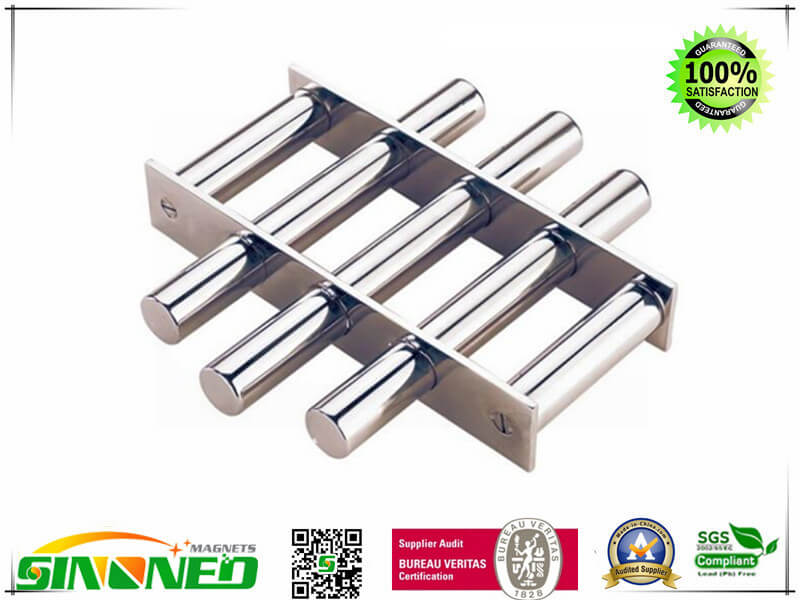

Sinoneo Permanent Magnetic Grids and Grates Filter are constructed by a row of magnetic bars which are fixed by frames in various shape. It can be square, rectangle, round, oval, triangle, rhombus, or irregular polygon, to suit for different positions. Center distance of bars is usually 2 inches.

Permanent Magnetic grids are designed for product purity of free-flowing materials such as carbon black, drugs, chemicals, cosmetics, plastics, food industries, and so on. These units are easily installed in any hopper or floor opening, chute or duct.

It makes product stream free-flowing products to come in direct contact with the grate. When anything containing iron substances passes through the framework, Iron particles are attracted to the bar magnets by magnetic fields.

With this solution, your equipment and facilities will be protected, while your products will be safe for consumption.

Permanent Magnetic Grids Optional Features:

1. The shell material: SS304, SS316,SS316L;

2. The magnetic strength grade: 2000Gs, 3000Gs, 6000Gs, 8000Gs,10000Gs, 12000Gs;

3. Working temperature grade <: 80, 100, 120, 150, 180, 200, 250, 300 degree Celsius; 4. Various designs available: easy clean type, one layer, multilayer; 5. Sizes and Shape: any sizes and any shapes, such as square, rectangle, round, oval, triangle, rhombus or irregular polygon; 6. It also takes customers' designs.

Field of applications for the permanent magnetic grids:

Pharmaceutical industry
Chemical industry
Food industry
Plastic industry
Recycling industry
Textile industry
Water treatment
Other liquid(hydro-material) separation applications.

Maximum Operation Temperature:

6 series is available for the customer to choose from

N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C

Magnet Strength of Permanent Magnetic grids:

Per customers’ requirements. The highest is up to 12, 000GS (1.2T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:

	0.25T	0.5T	0.7T	0.9T	1T	1.1T	1.2T
Φ 19 (0.75″ )	√ EH	√ EH	√ EH	√ H	√ M	–	–
Φ 22 (0.85″ )	√ EH	√ EH	√ EH	√ H	√ M	√ N	–
Φ 25 (1.00″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 32 (1.25″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 38 (1.50″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 50 (1.75″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 76 (3.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H
Φ 100(4.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H

Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.

(2). The related Max working temperature from different series.
H series: <=120 SH series: <=150 UH series: <=180 EH series: <=250 (3).Round and square are both available (4). 304 and 316L stainless steel type are available (5). Magnetic bar length can be custom made. Max's length is 2500mm when the diameter is 25mm. (6). Various end designs are available, such as Nailhead, thread hole, double screw bolt, etc. [/av_textblock] [av_textblock size='' font_color='' color='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-kba2phj2' id='' custom_class='' admin_preview_bg='']

The Specification of Permanent Magnetic grids:

Square shape

Specification	Size (mm)			No. of rods
Specification	L	W	H	No. of rods
MG 10/10	100	100	40	2
MG 15/15	150	150	40	3
MG 20/20	200	200	40	4
MG 25/25	250	250	40	5
MG 30/30	300	300	40	6
MG 35/35	350	350	40	7
MG 40/40	400	400	40	8
MG 45/45	450	450	40	9
MG 50/50	500	500	40	10
MG 30/20	300	200	40	4
MG 40/20	400	200	40	4
MG 40/30	400	300	40	6
MG 50/20	500	200	40	4
MG 50/30	500	300	40	6
MG 50/40	500	400	40	8

Round shape

Specification	Size(mm)		No. of rods
Specification	D	H	No. of rods
MG100	100	40	2
MG150	150	40	3
MG200	200	40	4
MG250	250	40	5
MG300	300	40	6
MG350	350	40	7
MG400	400	40	8
MG450	450	40	9
MG500	500	40	10

Permanent Magnetic grids have tremendous demand for removing solid and liquid ferrous materials. And what can filter out iron much easier and precisely than a magnet? Whatever may be the purpose, the iron residues stick all over the magnet, and then removed by hands.We are the leading manufacturer of magnets and magnetic products in China, have a wide collection of permanent magnetic grids.

For any queries or else for placing your orders feel free to contact us now.

In order to quote you the best price quickly, please provide the following information:

1. Product size, material, etc
2. Order quantity;
3. Attached the drawings if customized
4. Any special packing or other requirements
Our advantages: High quality, best service, fast delivery.
We offer OEM service.
