Magnetic Pot(Hooks)

PERMANENT MAGNETIC POT,MAGNETIC HOOKS

The permanent magnetic hooks(magnet pot or magnetic pot) position ferromagnetic items quickly and easily in the required place. these magnet systems have only one surface of magnetic attraction. In other words, all the other sides are non-magnetic. This form of construction restricts the further spread of the magnetic field. As a result, other items or machine parts in the vicinity of the pot magnet do not become magnetised.

Pot magnets retain their magnet force indefinitely. Only increase in temperature and external magnetic fields can reduce their magnetic force.

Pot magnets (magnet pot or magnetic pot) are strong magnets that are developed for the current industrial needs. magnet pots are made up of magnets like NdFeB, SmCo, AlNiCo, hard ferrite, plastic, rubber and other components.

These magnets (magnet pot or magnetic pot) can produce a magnetic field on its exclusive surface. Depending on the usage, pot magnets (magnet pot or magnetic pot) are of different size, shape and width.

Different types of pot magnets functions in different temperature. However they give same result in the normal temperature.

Applications:

  • Hanging signs and lights
  • Fastening antennas
  • Holding tarps
  • Making retrieval tools
  • Holding through non-ferrous materials
  • Use for fastening or holding steel doors
  • Insertion into molds
  • Insertion into fixtures

Other Magnetic Pot(Magnetic Hook):

Ferrite magnet pot, AlNiCo pot magnets, NdFeB magnet pot, NdFeB pot magnets, AlNiCo magnet pot, SmCo pot magnets, Ferrite pot magnets, SmCo magnet pot.magnetic pot, magnet pots, magnet holder, magnetic pots, round magnet attraction, magnet hook, Neodymium pot magnets, suspesion magnets, hook magnets, pot holding systems, holding magnets, cup magnets.

Specification:

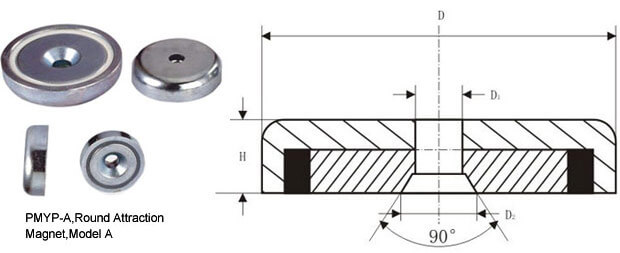

Magnetic Pot(Hooks) 1

Model D D1 D2 H
PMyp-A16 16 3.5 6.5 5
PMyp-A20 20 4.5 8.6 7
PMyp-A25 25 5.5 10.4 8
PMyp-A32 32 5.5 10.4 8
PMyp-A42 42 6.5 12 9
PMyp-A48 48 8.5 16 11.5
PMyp-A60 60 8.5 16 15
PMyp-A75 75 10.5 19 18

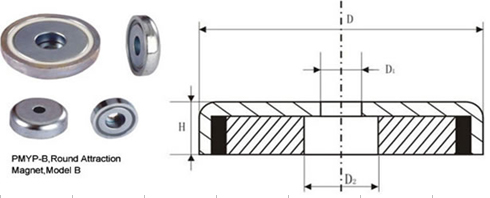

Magnetic Pot(Hooks) 2

Model D D1 D2 H
PMyp-B16 16 3.5 6.5 5
PMyp-B20 20 4.5 8 7
PMyp-B25 25 5.5 9 8
PMyp-B32 32 5.5 9 8
PMyp-B36 36 6.5 11 8
PMyp-B42 42 6.5 11 9
PMyp-B48 48 8.5 15 11.5
PMyp-B60 60 8.5 15 15
PMyp-B75 75 10.5 18 18

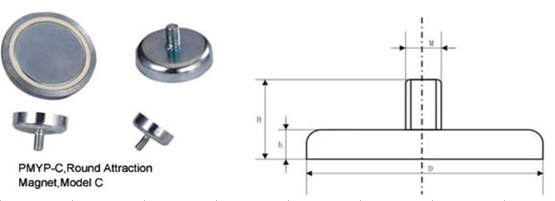

Magnetic Pot(Hooks) 3

Model D M H h
PMyp-C10 10 3 12 5
PMyp-C12 12 3 13 5
PMyp-C16 16 4 13 5
PMyp-C20 20 4 15 7
PMyp-C25 25 5 17 8
PMyp-C32 32 6 18 8
PMyp-C36 36 8 18 8
PMyp-C42 42 8 20 9
PMyp-C48 48 8 24 11.5
PMyp-C60 60 10 30 15
PMyp-C75 75 10 34 18

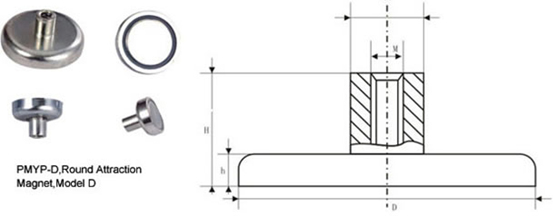

Magnetic Pot(Hooks) 4

Model D M D1 H L
PMyp-D10 10 3 5.5 12 5
PMyp-D12 12 3 6 13 5
PMyp-D16 16 4 6 13 5
PMyp-D20 20 4 8 15 7
PMyp-D25 25 5 10 17 8
PMyp-D32 32 6 10 18 8
PMyp-D36 36 8 10 18 8
PMyp-D42 42 8 12 20 9
PMyp-D48 48 8 12 24 11.5
PMyp-D60 60 10 14 30 15
PMyp-D75 75 10 14 33 18

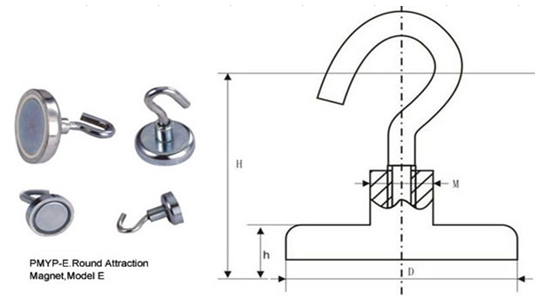

Magnetic Pot(Hooks) 5

Model D M H
PMyp-E10 10 3 30
PMyp-E12 12 3 30
PMyp-E16 16 4 37
PMyp-E20 20 4 45
PMyp-E25 25 4 47
PMyp-E32 32 4 48
PMyp-E36 36 4 48
PMyp-E42 42 5 60
PMyp-E48 48 5 64
PMyp-E60 60 6 70
PMyp-E75 75 6 76
