Magnetic Grids(Grate) – Sinoneo Magnets

Magnetic Grate with 90°C Angular Baffles

alloymagnets — Thu, 27 Feb 2020 05:19:03 +0000

MAGNETIC GRATE WITH 90°C ANGULAR BAFFLES

Magnetic Grate And Grid Filters, Neodymium Magnetic Grate, Magnetic Grate Separators

Material:	SUS304/316/316L+NdFeB Magnets/SmCo Magnets
Shape:	Round, rectangle, single-level, double-level, etc.
Application:	Hopper, Industrial filter, food industry, Ceramic industry ect.
Dimension:	100mm-2000mm, or customized as your request
Working Temp.	80ºC~350ºC
Various End:	Sealed, drilled or tapped holes, or with bolt, or as your request.
Magnet Strength:	8000-14000Gs
Package:	Standard Export Cartons
Shipping:	By sea, By air or By express delivery (DHL/UPS/FEDEX)
Features:	Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion

Are you looking for the magnetic grate, magnetic grate with baffles manufacturer & supplier?

We have a wide selection at great prices to help you get creative. All the magnetic grate is quality guaranteed. Sinoneo Magnets supply high quality of Food Grade Stainless Steel magnetic grate within the time stipulated. If you have any questions, please feel free to contact us now.

CONTACT US NOW.

Sinoneo Magnetic Grate with 90°C angular baffles are constructed by a row of magnetic bars which are fixed by frames in various shape. It can be square, rectangle, round, oval, triangle, rhombus, or irregular polygon, to suit for different positions. Center distance of bars is usually 2 inches.

Magnetic Grate or Grate magnet provides economical magnetic protection against tramp iron in mechanical or gravity conveying and processing systems. They can remove ferrous fines, fragments, and larger metal objects from dry particulates, liquids, and slurries.

With this solution, your equipment and facilities will be protected, while your products will be safe for consumption.

Magnetic Grate optional features:

1. The shell material: SS304, SS316,SS316L;
2. The magnetic strength grade: 2000Gs, 3000Gs, 6000Gs, 8000Gs,10000Gs, 12000Gs;
3. Working temperature grade <: 80, 100, 120, 150, 180, 200, 250, 300 degree Celsius; 4. Various designs available: easy clean type, one layer, multilayer; 5. Sizes and Shape: any sizes and any shapes, such as square, rectangle, round, oval, triangle, rhombus or irregular polygon; 6. It also takes customers' designs.
Maximum Operation Temperature of magnetic grate:

6 series is available for the customer to choose from

N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C

Magnet Strength of Magnetic grate:

Per customers’ requirements. The highest is up to 12, 000GS (1.2T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:

	0.25T	0.5T	0.7T	0.9T	1T	1.1T	1.2T
Φ 19 (0.75″ )	√ EH	√ EH	√ EH	√ H	√ M	–	–
Φ 22 (0.85″ )	√ EH	√ EH	√ EH	√ H	√ M	√ N	–
Φ 25 (1.00″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 32 (1.25″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 38 (1.50″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 50 (1.75″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 76 (3.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H
Φ 100(4.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H

Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.

Magnetic grate and grid filters have tremendous demand for removing solid and liquid ferrous materials. And what can filter out iron much easier and precisely than a magnet? Whatever may be the purpose, the iron residues stick all over the magnet, and then removed by hands.

We are the leading manufacturer of magnets and magnetic products in China, have a wide collection of magnetic grids and grates filter.

Our magnetic grate and grid are enclosed within a stainless steel coating. Our products are resistant to corrosion and hence have a long duration. In simple words, with an onetime investment, you can enjoy benefits for a longer time.

Our clientele profile includes some of the leading businesspersons from medicines, sanitation, machinery, and textile and food industry. We provide quality products at the most competitive price. Our product price ranges from $7-$400.

Go through our product list and place your order for the magnetic grids and grates. We provide fast shipping and you can expect the product within 12-15 business days. We are very particular about client satisfaction and look after the requirements. Free quotes will be provided upon request.

For any queries or else for placing your orders feel free to contact us now.

In order to quote you the best price quickly, please provide the following information:

1. Product size, material, etc
2. Order quantity;
3. Attached the drawings if customized
4. Any special packing or other requirements
Our advantages: High quality, best service, fast delivery.
We offer OEM service.
Quality First, Customer Forever

Maybe you like:

1, Packing of the magnetic grids and grates

2, Shipping Ways Of Our Magnetic Grids and Grates Filter?

3, What you should know when purchasing magnetic filters rod/bar/tube?

4, How to Calculate Magnetic Field Of Magnetic Filter Bar?

5, What’s The Advantages of Magnetic Grids and Grates？

MAGNETIC GRATE WITH 90°C ANGULAR BAFFLES

EASY CLEAN MAGNETIC GRATE

ROUND STAINLESS STEEL MAGNETIC GRIDS

RECTANGULAR STAINLESS STEEL MAGNETIC GRID SEPARATOR

MAGNETIC GRIDS AND GRATES

Get A Quote .

GETTING A QUOTE IS FAST & EASY

Let Us Assist You!

Our magnet experts will help you get exactly what you need – custom or stock – in record time with great quality at a very competitive price.Contact Sinoneo magnets through email, website, Phone number, for all types of magnetic materials for your domestic & commercial purpose.

Our fully staffed office of experienced professionals strives to return your quote on the same business day.

Welcome to contact us now!

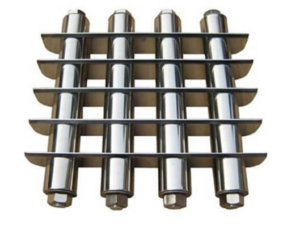

Easy Clean Magnetic Grate

alloymagnets — Thu, 27 Feb 2020 05:17:33 +0000

EASY CLEAN MAGNETIC GRATE

Easy Clean Magnetic Grate And Grid Filters, Neodymium Magnetic Grate, Magnetic Grate Separators

Material:	SUS304/316/316L+NdFeB Magnets/SmCo Magnets
Shape:	Round, rectangle, single-level, double-level, etc.
Application:	Hopper, Industrial filter, food industry, Ceramic industry ect.
Dimension:	100mm-2000mm, or customized as your request
Working Temp.	80ºC~350ºC
Various End:	Sealed, drilled or tapped holes, or with bolt, or as your request.
Magnet Strength:	8000-14000Gs
Package:	Standard Export Cartons
Shipping:	By sea, By air or By express delivery (DHL/UPS/FEDEX)
Features:	Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion

Are you looking for the easy clean magnetic grate, easy clean grate magnets manufacturer & supplier?

We have a wide selection at great prices to help you get creative. All the easy clean magnetic grate is quality guaranteed. Sinoneo Magnets supply high quality of Food Grade easy clean magnetic grate within the time stipulated. If you have any questions, please feel free to contact us now.

CONTACT US NOW.

Sinoneo Easy Clean Magnetic Grate Filters are constructed by a row of magnetic bars which are fixed by frames in various shape. It can be square, rectangle, round, oval, triangle, rhombus, or irregular polygon, to suit for different positions. Center distance of bars is usually 2 inches.

Easy cleaning magnetic grate and grid are designed for product purity of free-flowing materials such as carbon black, drugs, chemicals, cosmetics, plastics, food industries, and so on. These units are easily installed in any hopper or floor opening, chute or duct.

The magnetic grate, Grate Magnets are easy to install and clean. They offer efficient, economical magnetic protection of processing equipment, such as milling, extruding, and mixing while improving product purity.

Optional Features Of Easy Clean Magnetic Grate:

6 series is available for the customer to choose from

N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C

Magnet Strength of Easy Clean Magnetic Grate:

Per customers’ requirements. The highest is up to 12, 000GS (1.2T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:

	0.25T	0.5T	0.7T	0.9T	1T	1.1T	1.2T
Φ 19 (0.75″ )	√ EH	√ EH	√ EH	√ H	√ M	–	–
Φ 22 (0.85″ )	√ EH	√ EH	√ EH	√ H	√ M	√ N	–
Φ 25 (1.00″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 32 (1.25″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 38 (1.50″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 50 (1.75″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 76 (3.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H
Φ 100(4.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H

Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.

Easy clean Magnetic grate and grid filters have tremendous demand for removing solid and liquid ferrous materials. And what can filter out iron much easier and precisely than a magnet? Whatever may be the purpose, the iron residues stick all over the magnet, and then removed by hands.

We are the leading manufacturer of magnets and magnetic grates in China, have a wide collection of magnetic grids and grates filters.

Our easy-clean magnetic grate is enclosed within a stainless steel coating. Our products are resistant to corrosion and hence have a long duration. In simple words, with an onetime investment, you can enjoy benefits for a longer time.

For any queries or else for placing your orders feel free to contact us now.

In order to quote you the best price quickly, please provide the following information:

Maybe you like:

1, Packing of the magnetic grids and grates

2, Shipping Ways Of Our Magnetic Grids and Grates Filter?

3, What you should know when purchasing magnetic filters rod/bar/tube?

4, How to Calculate Magnetic Field Of Magnetic Filter Bar?

5, What’s The Advantages of Magnetic Grids and Grates？

MAGNETIC GRATE WITH 90°C ANGULAR BAFFLES

EASY CLEAN MAGNETIC GRATE

ROUND STAINLESS STEEL MAGNETIC GRIDS

RECTANGULAR STAINLESS STEEL MAGNETIC GRID SEPARATOR

MAGNETIC GRIDS AND GRATES

Get A Quote .

GETTING A QUOTE IS FAST & EASY

Let Us Assist You!

Our fully staffed office of experienced professionals strives to return your quote on the same business day.

Welcome to contact us now!

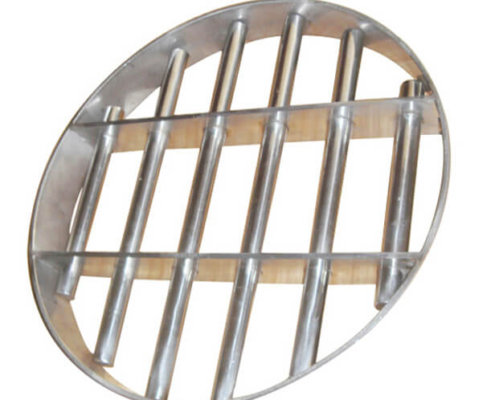

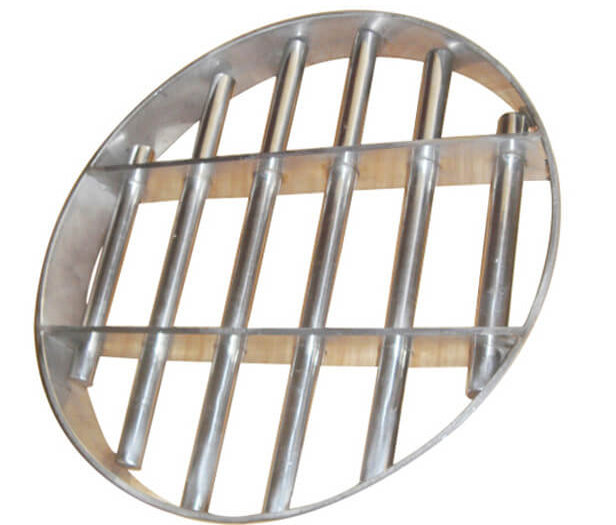

Round Stainless Steel Magnetic Grills

alloymagnets — Thu, 27 Feb 2020 05:11:49 +0000

ROUND STAINLESS STEEL MAGNETIC GRILLS

Magnetic Grills And Grates Filters, Neodymium Magnetic Grills, Magnetic Grills Separator

Material:	SUS304/316/316L+NdFeB Magnets/SmCo Magnets
Shape:	Round, rectangle, single-level, double-level, etc.
Application:	Hopper, Industrial filter, food industry, Ceramic industry ect.
Dimension:	100mm-2000mm, or customized as your request
Working Temp.	80ºC~350ºC
Various End:	Sealed, drilled or tapped holes, or with bolt, or as your request.
Magnet Strength:	8000-14000Gs
Package:	Standard Export Cartons
Shipping:	By sea, By air or By express delivery (DHL/UPS/FEDEX)
Features:	Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion

Are you looking for magnetic grills, round magnetic grills manufacturer & supplier?

We have a wide selection at great prices to help you get creative. All the magnetic grills are quality guaranteed. Sinoneo Magnets supply high quality of Food Grade Stainless Steel magnetic grills within the time stipulated. If you have any questions, please feel free to contact us now.

CONTACT US NOW.

Sinoneo magnetic grills are made up of stainless steel which provides a high-intensity, a high-gradient magnetic field to remove ferrous metals from free-flowing materials. It is available in square, round, and rectangular as per client requirements.

Our magnetic grills are used in or below hoppers, catch bins, floor opening’s, and many other locations to protect processing equipment and ensure product purity. It is used for a high level of protection.

Magnetic grills are designed for product purity of free-flowing materials such as carbon black, drugs, chemicals, cosmetics, plastics, food industries, and so on. These units are easily installed in any hopper or floor opening, chute or duct.

Magnetic Grills optional features:

Field of applications for the magnetic grills filter :

Pharmaceutical industry
Chemical industry
Food industry
Plastic industry
Recycling industry
Textile industry
Water treatment
Other liquid(hydro-material) separation applications.

Maximum Operation Temperature of magnetic grills:

6 series is available for the customer to choose from

N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C

Magnet Strength of Magnetic grills and grates:

Per customers’ requirements. The highest is up to 12, 000GS (1.2T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:

	0.25T	0.5T	0.7T	0.9T	1T	1.1T	1.2T
Φ 19 (0.75″ )	√ EH	√ EH	√ EH	√ H	√ M	–	–
Φ 22 (0.85″ )	√ EH	√ EH	√ EH	√ H	√ M	√ N	–
Φ 25 (1.00″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 32 (1.25″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 38 (1.50″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 50 (1.75″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 76 (3.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H
Φ 100(4.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H

Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.

(2). The related Max working temperature from different series.
H series: <=120 SH series: <=150 UH series: <=180 EH series: <=250 (3).Round and square are both available (4). 304 and 316L stainless steel type are available (5). Magnetic bar length can be custom made. Max's length is 2500mm when the diameter is 25mm. (6). Various end designs are available, such as Nailhead, thread hole, double screw bolt, etc. [/av_textblock] [av_one_half first min_height='' vertical_alignment='' space='' custom_margin='' margin='0px' row_boxshadow='' row_boxshadow_color='' row_boxshadow_width='10' link='' linktarget='' link_hover='' title_attr='' alt_attr='' padding='0px' highlight='' highlight_size='' border='' border_color='' radius='0px' column_boxshadow='' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' background_position='top left' background_repeat='no-repeat' animation='' mobile_breaking='' mobile_display='' av_uid='av-1qoogi5'] [av_textblock size='' font_color='' color='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-kba89shi' id='' custom_class='' admin_preview_bg='']

The Specification of Magnetic Grills:

Round shape

Specification	Size(mm)		No. of rods
Specification	D	H	No. of rods
MG100	100	40	2
MG150	150	40	3
MG200	200	40	4
MG250	250	40	5
MG300	300	40	6
MG350	350	40	7
MG400	400	40	8
MG450	450	40	9
MG500	500	40	10

Other shapes and sizes of magnetic grills can be made as your request.

[/av_one_half]

Square shape

Specification	Size (mm)			No. of rods
Specification	L	W	H	No. of rods
MG 10/10	100	100	40	2
MG 15/15	150	150	40	3
MG 20/20	200	200	40	4
MG 25/25	250	250	40	5
MG 30/30	300	300	40	6
MG 35/35	350	350	40	7
MG 40/40	400	400	40	8
MG 45/45	450	450	40	9
MG 50/50	500	500	40	10
MG 30/20	300	200	40	4
MG 40/20	400	200	40	4
MG 40/30	400	300	40	6
MG 50/20	500	200	40	4
MG 50/30	500	300	40	6
MG 50/40	500	400	40	8

Our advantage:

1, With more than 10 years experience of magnets area

2, Experienced Staff

3, Sophisticated equipment

4, Competitive price: People have asked us how we can offer such high quality at such good prices and the answer is simple: we
design and build our own products and can pass those savings on to you. There is no middleman.

5, OEM are welcomed, samples are available, small orders accepted

6,100% Quality & Best Service Guarantee: Competitive pricing doesn’t mean we skimp on service. Our fully staffed office of experienced professionals strives to return your quote on the same business day.

7, Quick delivery time: It is about 7~15 days.

8, Payment: We can accept T/T, Western Union, Paypal

Let Sinoneo Magnets help you in filtering out those unwanted ferrous materials!

Magnetic grills and grates filter have tremendous demand for removing solid and liquid ferrous materials. And what can filter out iron much easier and precisely than a magnet? Whatever may be the purpose, the iron residues stick all over the magnet, and then removed by hands.

We are the leading manufacturer of magnets and magnetic products in China, have a wide collection of magnetic grids and grates filter.

Our magnetic grills and grates are enclosed within a stainless steel coating. Our products are resistant to corrosion and hence have a long duration. In simple words, with an onetime investment, you can enjoy benefits for a longer time.

For any queries or else for placing your orders feel free to contact us now.

In order to quote you the best price quickly, please provide the following information:

Maybe you like:

1, Packing of the magnetic grids and grates

2, Shipping Ways Of Our Magnetic Grids and Grates Filter?

3, What you should know when purchasing magnetic filters rod/bar/tube?

4, How to Calculate Magnetic Field Of Magnetic Filter Bar?

5, What’s The Advantages of Magnetic Grids and Grates？

MAGNETIC GRATE WITH 90°C ANGULAR BAFFLES

EASY CLEAN MAGNETIC GRATE

ROUND STAINLESS STEEL MAGNETIC GRIDS

RECTANGULAR STAINLESS STEEL MAGNETIC GRID SEPARATOR

MAGNETIC GRIDS AND GRATES

Get A Quote .

GETTING A QUOTE IS FAST & EASY

Let Us Assist You!

Our fully staffed office of experienced professionals strives to return your quote on the same business day.

Welcome to contact us now!

Rectangular Stainless Steel Magnetic Grill Separator

alloymagnets — Thu, 27 Feb 2020 05:09:01 +0000

RECTANGULAR STAINLESS STEEL MAGNETIC GRILL SEPARATOR

Magnetic Grill And Grate Filters, Neodymium Magnetic Grill, Magnetic Grill Separators

Material:	SUS304/316/316L+NdFeB Magnets/SmCo Magnets
Shape:	Round, rectangle, single-level, double-level, etc.
Application:	Hopper, Industrial filter, food industry, Ceramic industry ect.
Dimension:	100mm-2000mm, or customized as your request
Working Temp.	80ºC~350ºC
Various End:	Sealed, drilled or tapped holes, or with bolt, or as your request.
Magnet Strength:	8000-14000Gs
Package:	Standard Export Cartons
Shipping:	By sea, By air or By express delivery (DHL/UPS/FEDEX)
Features:	Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion

Sinoneo Magnet is a professional manufacturer and exporter of Magnetic Grill, magnetic filter grill, High-Performance grill magnets in China. We supply high quality of Food Grade Stainless Steel Magnetic Grill within the time stipulated.

Are you looking for a custom magnetic grill and grate, magnetic grill filters manufacturer & supplier?

We have a wide selection at great prices to help you get creative. All the magnetic grill and grate are quality guaranteed. If you have any questions, please feel free to contact us now.

CONTACT US NOW.

Sinoneo Magnetic Grill is used for the separation of iron particles mixed with dry, granular, or free-flowing material. Magnetic Grill is made by using stainless steel frames (Round, Square or Rectangular) with Magnetic bars inside the frame.

These Magnetic Grills are made up of Magnetic Elements that are fitted inside a required size frame. The Magnetic Elements are made up of hard Ferrite Magnets or High-Intensity Strong Neodymium Magnets. All the components are made up of Stainless Steel 304/316 /316L material. The overall construction of the Magnetic Grill can also be made as per the customer specification and sizes.

The magnetic grills are efficiently utilized if contamination is within 1% to 1.5% by weight. For higher levels of contamination Drawer Grills or Multi Drawer Grills should be used.

Magnetic Grill Optional Features:

Industries using Magnetic Grill:

Plastic
Food Products. (Sugar, Coffee, Tea, Grains, Pulses, Flour, Spices, Milk, etc.)
Pharmaceutical
Chemical
Ceramic
Colors / Paints
Pigments
Ink
Refractory
Mineral

Maximum Operation Temperature of Magnetic Grill:

6 series is available for the customer to choose from

N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C

Magnet Strength of Magnetic grill:

Per customers’ requirements. The highest is up to 12, 000GS (1.2T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:

	0.25T	0.5T	0.7T	0.9T	1T	1.1T	1.2T
Φ 19 (0.75″ )	√ EH	√ EH	√ EH	√ H	√ M	–	–
Φ 22 (0.85″ )	√ EH	√ EH	√ EH	√ H	√ M	√ N	–
Φ 25 (1.00″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 32 (1.25″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 38 (1.50″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 50 (1.75″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 76 (3.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H
Φ 100(4.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H

Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.

The Specification of Magnetic grill:

Square shape

Specification	Size (mm)			No. of rods
Specification	L	W	H	No. of rods
MG 10/10	100	100	40	2
MG 15/15	150	150	40	3
MG 20/20	200	200	40	4
MG 25/25	250	250	40	5
MG 30/30	300	300	40	6
MG 35/35	350	350	40	7
MG 40/40	400	400	40	8
MG 45/45	450	450	40	9
MG 50/50	500	500	40	10
MG 30/20	300	200	40	4
MG 40/20	400	200	40	4
MG 40/30	400	300	40	6
MG 50/20	500	200	40	4
MG 50/30	500	300	40	6
MG 50/40	500	400	40	8

Round shape

Specification	Size(mm)		No. of rods
Specification	D	H	No. of rods
MG100	100	40	2
MG150	150	40	3
MG200	200	40	4
MG250	250	40	5
MG300	300	40	6
MG350	350	40	7
MG400	400	40	8
MG450	450	40	9
MG500	500	40	10

Magnetic grill filters have a tremendous demand for removing solid and liquid ferrous materials. And what can filter out iron much easier and precisely than a magnet? Whatever may be the purpose, the iron residues stick all over the magnet, and then removed by hands.

We are the leading manufacturer of magnets and magnetic products in China, have a wide collection of magnetic grids and grates filter.

Go through our product list and place your order for the magnetic grill and grate. We provide fast shipping and you can expect the product within 12-15 business days. We are very particular about client satisfaction and look after the requirements. Free quotes will be provided upon request.

For any queries or else for placing your orders feel free to contact us now.

In order to quote you the best price quickly, please provide the following information:

Maybe you like:

1, Packing of the magnetic grids and grates

2, Shipping Ways Of Our Magnetic Grids and Grates Filter?

3, What you should know when purchasing magnetic filters rod/bar/tube?

4, How to Calculate Magnetic Field Of Magnetic Filter Bar?

5, What’s The Advantages of Magnetic Grids and Grates？

MAGNETIC GRATE WITH 90°C ANGULAR BAFFLES

EASY CLEAN MAGNETIC GRATE

ROUND STAINLESS STEEL MAGNETIC GRIDS

RECTANGULAR STAINLESS STEEL MAGNETIC GRID SEPARATOR

MAGNETIC GRIDS AND GRATES

Get A Quote .

GETTING A QUOTE IS FAST & EASY

Let Us Assist You!

Our fully staffed office of experienced professionals strives to return your quote on the same business day.

Welcome to contact us now!

Magnetic Grids and Grates

alloymagnets — Thu, 27 Feb 2020 04:32:53 +0000

High Performance Magnetic Grids And Grates

Magnetic Grids And Grates Filters, Neodymium Magnetic Grates, Magnetic Grate Separators

Magnetic Grids and Grates

Material:	SUS304/316/316L+NdFeB Magnets/SmCo Magnets
Shape:	Round, rectangle, single-level, double-level, etc.
Application:	Hopper, Industrial filter, food industry, Ceramic industry ect.
Dimension:	100mm-2000mm, or customized as your request
Working Temp.	80ºC~350ºC
Various End:	Sealed, drilled or tapped holes, or with bolt, or as your request.
Magnet Strength:	8000-14000Gs
Package:	Standard Export Cartons
Shipping:	By sea, By air or By express delivery (DHL/UPS/FEDEX)
Features:	Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion

Sinoneo Magnet is a professional manufacturer and exporter of Magnetic Grids And Grates, magnetic filter grates, High-Performance grid and grate magnets in China. We supply high quality of Food Industry Grade Stainless Steel Magnetic Grid And Grates within the time stipulated.

Are you looking for a custom magnetic grids and grates, magnetic grate filters manufacturer & supplier?

We have a wide selection at great prices to help you get creative. All the magnetic grids and grates are quality guaranteed. If you have any questions, please feel free to contact us now.

CONTACT US NOW.

Sinoneo Magnetic Grids and Grates Filter are constructed by a row of magnetic bars which are fixed by frames in various shape. It can be square, rectangle, round, oval, triangle, rhombus, or irregular polygon, to suit for different positions. Center distance of bars is usually 2 inches.

Magnetic grids and grates are designed for product purity of free-flowing materials such as carbon black, drugs, chemicals, cosmetics, plastics, food industries, and so on. These units are easily installed in any hopper or floor opening, chute or duct.

It makes product stream free-flowing products to come in direct contact with the grate. When anything containing iron substances passes through the framework, Iron particles are attracted to the bar magnets by magnetic fields.

With this solution, your equipment and facilities will be protected, while your products will be safe for consumption.

Magnetic Grids and Grates optional features:

Field of applications for the magnetic grids and grates filter :

Pharmaceutical industry
Chemical industry
Food industry
Plastic industry
Recycling industry
Textile industry
Water treatment
Other liquid(hydro-material) separation applications.

Maximum Operation Temperature:

6 series is available for the customer to choose from

N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C

Magnet Strength of Magnetic grids and grates:

Per customers’ requirements. The highest is up to 12, 000GS (1.2T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:

	0.25T	0.5T	0.7T	0.9T	1T	1.1T	1.2T
Φ 19 (0.75″ )	√ EH	√ EH	√ EH	√ H	√ M	–	–
Φ 22 (0.85″ )	√ EH	√ EH	√ EH	√ H	√ M	√ N	–
Φ 25 (1.00″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 32 (1.25″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 38 (1.50″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 50 (1.75″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 76 (3.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H
Φ 100(4.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H

Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.

The Specification of Magnetic grids and grates:

Square shape

Specification	Size (mm)			No. of rods
Specification	L	W	H	No. of rods
MG 10/10	100	100	40	2
MG 15/15	150	150	40	3
MG 20/20	200	200	40	4
MG 25/25	250	250	40	5
MG 30/30	300	300	40	6
MG 35/35	350	350	40	7
MG 40/40	400	400	40	8
MG 45/45	450	450	40	9
MG 50/50	500	500	40	10
MG 30/20	300	200	40	4
MG 40/20	400	200	40	4
MG 40/30	400	300	40	6
MG 50/20	500	200	40	4
MG 50/30	500	300	40	6
MG 50/40	500	400	40	8

Round shape

Specification	Size(mm)		No. of rods
Specification	D	H	No. of rods
MG100	100	40	2
MG150	150	40	3
MG200	200	40	4
MG250	250	40	5
MG300	300	40	6
MG350	350	40	7
MG400	400	40	8
MG450	450	40	9
MG500	500	40	10

Our advantage:

1, With more than 10 years experience of magnets area

2, Experienced Staff

3, Sophisticated equipment

5, OEM are welcomed, samples are available, small orders accepted

7, Quick delivery time: It is about 7~15 days.

8, Payment: We can accept T/T, Western Union, Paypal

Let Sinoneo Magnets help you in filtering out those unwanted ferrous materials!

Magnetic grids and grates filter have tremendous demand for removing solid and liquid ferrous materials. And what can filter out iron much easier and precisely than a magnet? Whatever may be the purpose, the iron residues stick all over the magnet, and then removed by hands.

We are the leading manufacturer of magnets and magnetic products in China, have a wide collection of magnetic grids and grates filter.

Our magnetic grids and grates are enclosed within a stainless steel coating. Our products are resistant to corrosion and hence have a long duration. In simple words, with an onetime investment, you can enjoy benefits for a longer time.

For any queries or else for placing your orders feel free to contact us now.

In order to quote you the best price quickly, please provide the following information:

Maybe you like:

1, Packing of the magnetic grids and grates

2, Shipping Ways Of Our Magnetic Grids and Grates Filter?

3, What you should know when purchasing magnetic filters rod/bar/tube?

4, How to Calculate Magnetic Field Of Magnetic Filter Bar?

5, What’s The Advantages of Magnetic Grids and Grates？

MAGNTIC RODS,MAGNETIC FILTER RODS

FOOD INDUSTRY GRADE STAINLESS STEEL MAGNETIC FILTER ROD

PERMANENT MAGNETIC FILTER BARS

MAGNETIC TUBE,MAGNETIC FILTER TUBE

Get A Quote .

GETTING A QUOTE IS FAST & EASY

Let Us Assist You!

Our fully staffed office of experienced professionals strives to return your quote on the same business day.

Welcome to contact us now!

Permanent Magnetic Grids

alloymagnets — Thu, 27 Feb 2020 03:35:30 +0000

POWERFUL PERMANENT MAGNETIC GRIDS

Permanent Magnetic Grids Filter, Neodymium Magnetic Grids, Magnetic Grid Separators

Material:	SUS304/316/316L+NdFeB Magnets/SmCo Magnets
Shape:	Round, rectangle, single-level, double-level, etc.
Application:	Hopper, Industrial filter, food industry, Ceramic industry ect.
Dimension:	100mm-2000mm, or customized as your request
Working Temp.	80ºC~350ºC
Various End:	Sealed, drilled or tapped holes, or with bolt, or as your request.
Magnet Strength:	8000-14000Gs
Package:	Standard Export Cartons
Shipping:	By sea, By air or By express delivery (DHL/UPS/FEDEX)
Features:	Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion

Sinoneo Magnet is a professional manufacturer and exporter of Permanent Magnetic Grids, magnetic filter grates, High-Performance permanent grids magnets in China. We supply high quality of Food Grade Permanent Magnetic Grids And Grates within the time stipulated.

Are you looking for a custom permanent magnetic grids manufacturer & supplier?

We have a wide selection at great prices to help you get creative. All the permanent magnetic grids and grates are quality guaranteed. If you have any questions, please feel free to contact us now.

CONTACT US NOW.

Sinoneo Permanent Magnetic Grids and Grates Filter are constructed by a row of magnetic bars which are fixed by frames in various shape. It can be square, rectangle, round, oval, triangle, rhombus, or irregular polygon, to suit for different positions. Center distance of bars is usually 2 inches.

Permanent Magnetic grids are designed for product purity of free-flowing materials such as carbon black, drugs, chemicals, cosmetics, plastics, food industries, and so on. These units are easily installed in any hopper or floor opening, chute or duct.

With this solution, your equipment and facilities will be protected, while your products will be safe for consumption.

Permanent Magnetic Grids Optional Features:

1. The shell material: SS304, SS316,SS316L;

2. The magnetic strength grade: 2000Gs, 3000Gs, 6000Gs, 8000Gs,10000Gs, 12000Gs;

3. Working temperature grade <: 80, 100, 120, 150, 180, 200, 250, 300 degree Celsius; 4. Various designs available: easy clean type, one layer, multilayer; 5. Sizes and Shape: any sizes and any shapes, such as square, rectangle, round, oval, triangle, rhombus or irregular polygon; 6. It also takes customers' designs.

Field of applications for the permanent magnetic grids:

6 series is available for the customer to choose from

N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C

Magnet Strength of Permanent Magnetic grids:

Per customers’ requirements. The highest is up to 12, 000GS (1.2T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:

	0.25T	0.5T	0.7T	0.9T	1T	1.1T	1.2T
Φ 19 (0.75″ )	√ EH	√ EH	√ EH	√ H	√ M	–	–
Φ 22 (0.85″ )	√ EH	√ EH	√ EH	√ H	√ M	√ N	–
Φ 25 (1.00″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 32 (1.25″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 38 (1.50″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 50 (1.75″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 76 (3.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H
Φ 100(4.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H

Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.

The Specification of Permanent Magnetic grids:

Square shape

Specification	Size (mm)			No. of rods
Specification	L	W	H	No. of rods
MG 10/10	100	100	40	2
MG 15/15	150	150	40	3
MG 20/20	200	200	40	4
MG 25/25	250	250	40	5
MG 30/30	300	300	40	6
MG 35/35	350	350	40	7
MG 40/40	400	400	40	8
MG 45/45	450	450	40	9
MG 50/50	500	500	40	10
MG 30/20	300	200	40	4
MG 40/20	400	200	40	4
MG 40/30	400	300	40	6
MG 50/20	500	200	40	4
MG 50/30	500	300	40	6
MG 50/40	500	400	40	8

Round shape

Specification	Size(mm)		No. of rods
Specification	D	H	No. of rods
MG100	100	40	2
MG150	150	40	3
MG200	200	40	4
MG250	250	40	5
MG300	300	40	6
MG350	350	40	7
MG400	400	40	8
MG450	450	40	9
MG500	500	40	10

Permanent Magnetic grids have tremendous demand for removing solid and liquid ferrous materials. And what can filter out iron much easier and precisely than a magnet? Whatever may be the purpose, the iron residues stick all over the magnet, and then removed by hands.We are the leading manufacturer of magnets and magnetic products in China, have a wide collection of permanent magnetic grids.

For any queries or else for placing your orders feel free to contact us now.

In order to quote you the best price quickly, please provide the following information:

Maybe you like:

1, Packing of the magnetic grids and grates

2, Shipping Ways Of Our Magnetic Grids and Grates Filter?

3, What you should know when purchasing magnetic filters rod/bar/tube?

4, How to Calculate Magnetic Field Of Magnetic Filter Bar?

5, What’s The Advantages of Magnetic Grids and Grates？

MAGNETIC GRATE WITH 90°C ANGULAR BAFFLES

EASY CLEAN MAGNETIC GRATE

ROUND STAINLESS STEEL MAGNETIC GRIDS

RECTANGULAR STAINLESS STEEL MAGNETIC GRID SEPARATOR

MAGNETIC GRIDS AND GRATES

Get A Quote .

GETTING A QUOTE IS FAST & EASY

Let Us Assist You!

Our fully staffed office of experienced professionals strives to return your quote on the same business day.

Welcome to contact us now!

Magnetic Grids(Grate) – Sinoneo Magnets

Magnetic Grate with 90°C Angular Baffles

MAGNETIC GRATE WITH 90°C ANGULAR BAFFLES

Are you looking for the magnetic grate, magnetic grate with baffles manufacturer & supplier?

Magnetic Grate optional features:

Magnet Strength of Magnetic grate:

Maybe you like:

Get A Quote .

GETTING A QUOTE IS FAST & EASY

Easy Clean Magnetic Grate

EASY CLEAN MAGNETIC GRATE

Are you looking for the easy clean magnetic grate, easy clean grate magnets manufacturer & supplier?

Optional Features Of Easy Clean Magnetic Grate:

Magnet Strength of Easy Clean Magnetic Grate:

Maybe you like:

Get A Quote .

GETTING A QUOTE IS FAST & EASY

Round Stainless Steel Magnetic Grills

ROUND STAINLESS STEEL MAGNETIC GRILLS

Are you looking for magnetic grills, round magnetic grills manufacturer & supplier?

Magnetic Grills optional features:

Field of applications for the magnetic grills filter :

Magnet Strength of Magnetic grills and grates:

The Specification of Magnetic Grills:

Maybe you like:

Get A Quote .

GETTING A QUOTE IS FAST & EASY

Rectangular Stainless Steel Magnetic Grill Separator

RECTANGULAR STAINLESS STEEL MAGNETIC GRILL SEPARATOR

Are you looking for a custom magnetic grill and grate, magnetic grill filters manufacturer & supplier?

Magnetic Grill Optional Features:

Industries using Magnetic Grill:

Magnet Strength of Magnetic grill:

The Specification of Magnetic grill:

Maybe you like:

Get A Quote .

GETTING A QUOTE IS FAST & EASY

Magnetic Grids and Grates

High Performance Magnetic Grids And Grates

Are you looking for a custom magnetic grids and grates, magnetic grate filters manufacturer & supplier?

Magnetic Grids and Grates optional features:

Field of applications for the magnetic grids and grates filter :

Pharmaceutical industry Chemical industry Food industry Plastic industry Recycling industry Textile industry Water treatment Other liquid(hydro-material) separation applications. Maximum Operation Temperature:

Magnet Strength of Magnetic grids and grates:

The Specification of Magnetic grids and grates:

Maybe you like:

Get A Quote .

GETTING A QUOTE IS FAST & EASY

Permanent Magnetic Grids

POWERFUL PERMANENT MAGNETIC GRIDS

Are you looking for a custom permanent magnetic grids manufacturer & supplier?

Permanent Magnetic Grids Optional Features:

Field of applications for the permanent magnetic grids:

Magnet Strength of Permanent Magnetic grids:

The Specification of Permanent Magnetic grids:

Maybe you like:

Get A Quote .

GETTING A QUOTE IS FAST & EASY

Pharmaceutical industry
Chemical industry
Food industry
Plastic industry
Recycling industry
Textile industry
Water treatment
Other liquid(hydro-material) separation applications.

Maximum Operation Temperature:
